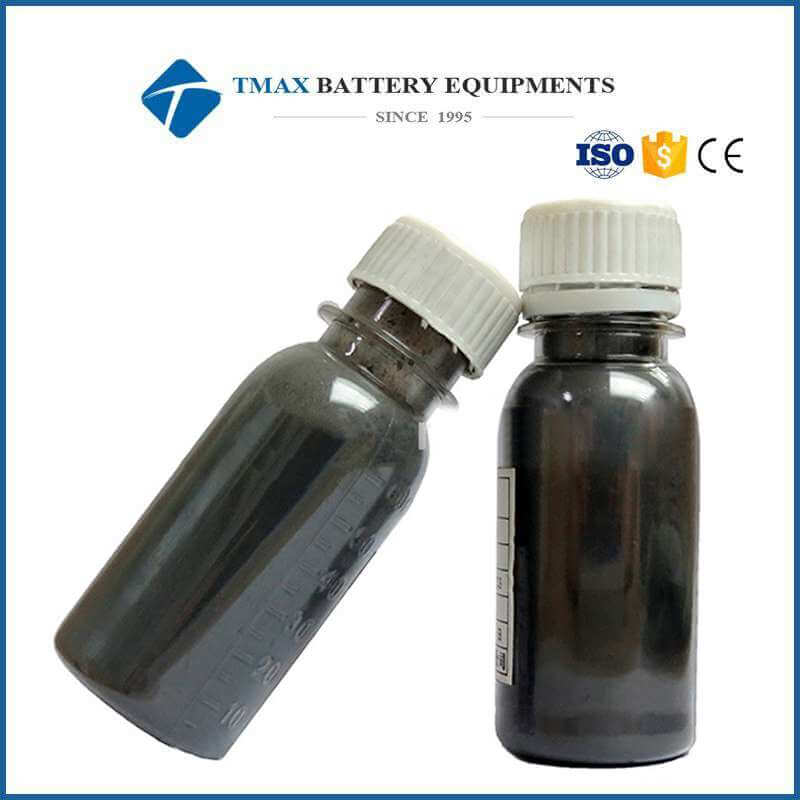

LiFePO4 Powder Raw Materials For Li-Ion Battery
Model Number:
TMAX-LiFePO4Compliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
LiFePO4 Powder Raw Materials For Li-Ion Battery
Main application:
Is the positive active material of the power battery. Mainly used for energy storage/electric tools/light electric vehicle/miner's lamp/mobile power and so on.
Main characteristics:
1. High energy density, Its theoretical specific capacity is 170 mAh/g, Actual product specific capacity can be more than 140 mAh/g (0.2 C, 25 ° C);
2. High security, is the safety of lithium ion battery cathode material; Do not contain any harmful heavy metals;
3. long life: In 100% DOD (depth of discharge) conditions, can charge and discharge more than 2000 times;(reason: lithium iron phosphate lattice stability is good, the lithium ions embedded and emergence of lattice impact is not big, so it has good reversibility. The deficiencies are ionic conductivity electrode is poor, not suitable for large current charge and discharge, stuck in applications. Solution: in the electrode coating on the surface of conductive material, doped modified electrode. )
|
Item |
Unit |
Test results |
Test method |
|
|
Appearance |
N.A |
No agglomeration |
visual inspection |
|
|
Tap density |
g/cm3 |
1.132 |
Contador tap density tester |
|
|
Resistance |
Ω.cm |
114.9 |
Mitsubishi electric conductivity tester |
|
|
Particle size |
D10 |
um |
0.549 |
MASTERSIZER2000 refractive index 1.84% absorptivity 0.1% |
|
D50 |
um |
1.508 |
||
|
D90 |
um |
6.010 |
||
|
Carbon |
% |
1.29 |
High frequency infrared carbon sulfur instrument |
|
|
Specific surface area |
M2/g |
12.21 |
ST-08 SSA TESTING |
|
|
PH |
N.A |
8.92 |
PH tester |
|
|
Moisture |
PPM |
1043.0 |
Karl-Fisher Moisture analyzer |
|
|
First discharge efficiency |
% |
97.5 |
Half cell |
|
|
First capacity |
mAh/g |
155.5 |
||
