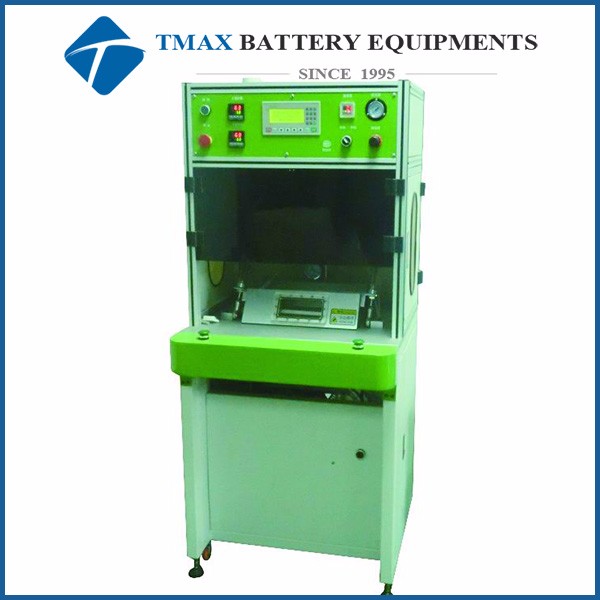

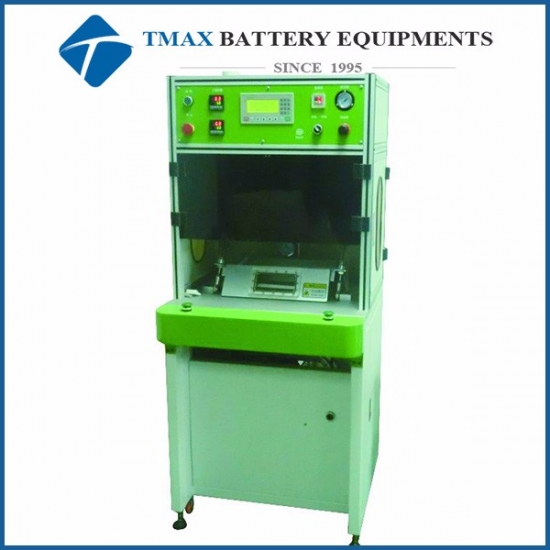

Li ion Battery Heat Sealing Machine Used For Pouch Cell Final Vacuum Sealing
Model Number:
TMAX-BFZ-250Dimension(L*W*H):
Sealing head length: 200 mm Sealing width: 5 mmNet Weight:
About 200kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Li ion Battery Heat Sealing Machine Used For Pouch Cell Final Vacuum Sealing
1 TMAX-BFZ-250 Battery vacuum sealing machine is mainly used for soft packaging (medium and small specification) lithium polymer battery/pouch cell vacuum sealing after battery formation.
2 The vacuum sealing machine is a battery heat sealer machine, with sealing Temperature from RT to 250℃ adjustable.
3 The machine is with auto needle function, so it can prick the battery and vacuum the air in battery then vacuum the battery.
|
Model |
Vacuum Sealing Machine TMAX-BFZ-250 |
|
Source voltage |
AC 220V/110V, 50/60HZ |
|
Power |
50W |
|
Warranty |
Two year limited warranty with lifetime support |
|
Advantages |
1 Sealing Head adopts copper material, good heat transfer effect, 2 With automatic needle function, waste liquid recycling equipment. 3 Can apply to different specifications battery, and the adjusting easily |
|
Vacuum degree |
-90Kpa - 0 |
|
Sealing head TEM |
RT-250℃, adjustable |
|
TEM accuracy |
±1.5℃ |
|
Sealing pressure |
0-7Kg/cm2, adjustable |
|
Sealing time |
0-99s, adjustable |
|
Sealing width |
5mm, customized |
|
Sealing head length |
200-400mm |
|
Air source |
0.5-0.7MPa (72.5-102psi) |
|
Dimension(L*W*H) |
600*500*1700mm |
|
Weight |
About 220kg |
