Li-ion Battery Electrode Double Drum Electrical Round Drying Oven
Model Number:
TMAX-JK-ZKHX-AR2Type:
Vacuum Drying OvenInput Power:
6KW*2Dimension(L*W*H):
1150*2280*1000mmCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

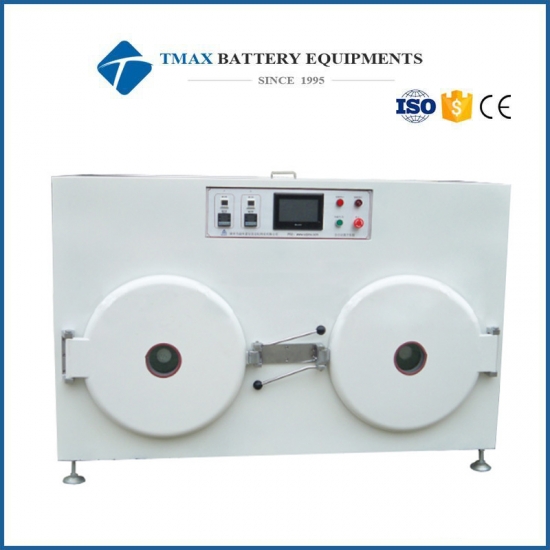

Li-ion Battery Electrode Double Drum Electrical Round Drying Oven
SPECIFICATION
1 The Round Vacuum Oven is dedicated to the Li-ion battery electrode drying process for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 380 kg.
2 The TMAX-JK-ZKHX-AR2 Round vacuum oven is equipped with two drums, you can also choose single drum, three drum or four drum according the battery production line output.
|
Model |
Double Drum Round Vacuum Oven |
|
Working Voltage |
3phase, 380V |
|
Max. Power Consumption |
6KW*2 |
|
Temperature range |
RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃ |
|
Vacuum degree |
0~-0.098Mpa, Can maintain limited vacuum degree ≥96% after 24hours |
|
Working chamber size |
Dia 550*600, can customized according request |
|
Product Dimensions (H*W*D) |
1150*2280*1000mm |
|
Air supply |
Vacuum :-0.095~-0.1Mpa Compressed air :0.4~0.5Mpa Dry air :0.1~0.2Mpa |
|
Temperature increase speed |
From RT 25℃ to 80℃ need about 25min |
|
Heating mode |
Electric heating |
|
Working chamber material |
SUS stainless steel |
|
Warranty |
One year limited warranty with lifetime support |
