Large Semi-automatic Cylinder Battery Sealing Machine
Model Number:
TMAX-PX-OE-A18Input Power:
200WCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

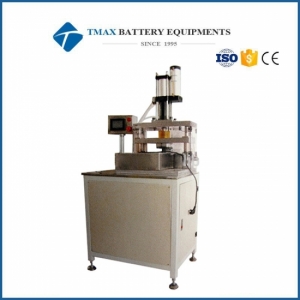

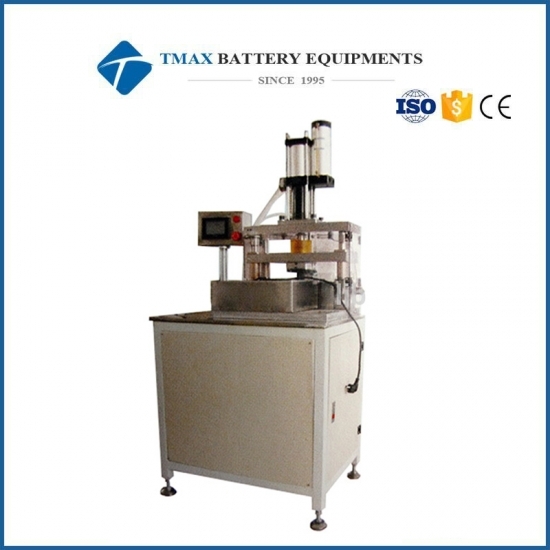

Large Semi-automatic Cylinder Battery Sealing Machine
TMAX-PX-OE-A18 is a Semi-automatic crimping machine for sealing all types of cylinder cases in battery R&D labs.
It is with Touch screen and safety protection device, can finish the sealing process quickly and semi-automatically.
Technical Parameter：
|
Model |
Electric Cylinder Cell Sealing Machine TMAX-PX-OE-A18 |
|
Source voltage |
AC110V/220V, 50/60HZ customized |
|
Power |
200W |
|
Warranty |
Two years limited with lifetime support |
|
Air source |
0.6-0.8Mpa |
|
Crimping Dies |
Suitable diameter size : φ14-26mm Suitable Height : 35-70mm Wish changing Die can sealing all kinds of cylinder battery such as CR123 /18650 / 26650 / 32650 / AA /AAA |
|
Structure |
Semi-auto sealing for cylinder cell With Touch screen and safety protection device |
|
Output |
25-35pcs/min |
|
Application Notes |
Customized die for other cylindrical cell types is available upon request
It is necessary to groove the opening end of the cylindrical case by using the TMAX-GC650 grooving machine before sealing the cap
Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
|
