Large Semi-auto vacuum steel ball sealer
Model Number:
TMAX-A-027Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION
● Adopt air cylinder straight line cycle, hydraulic buffer limit, move stability.
● Steel ball storage in stainless steel vessels, avoid magnetic
● Piston type send steel ball, avoid empty sealer or repeat steel ball sealer.
● Use the air cylinder to seal steel ball, easy to adjust air pressure.

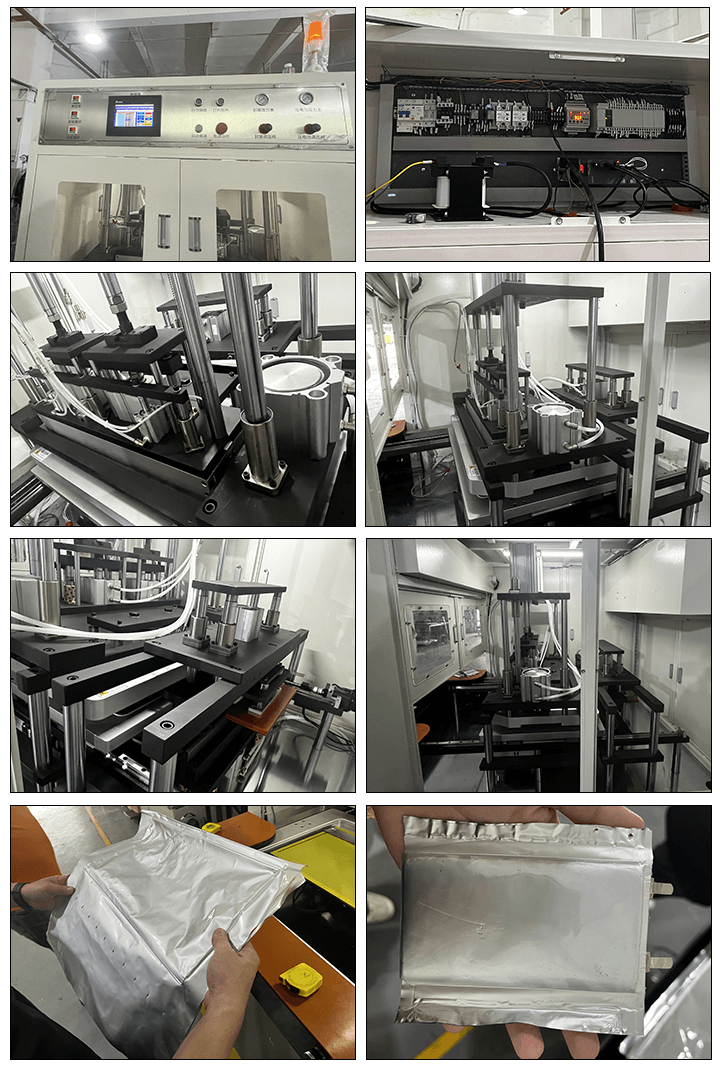

Large Semi-auto vacuum steel ball sealer
Functions
● It is used to vacuum steel ball sealer for big size prismatic EV-battery.
Features
● Double chambers, recycle, battery deeding & steel ball sealer are operation at the same time, chamber recycle precision ±0.1mm.● Adopt air cylinder straight line cycle, hydraulic buffer limit, move stability.
● Steel ball storage in stainless steel vessels, avoid magnetic
● Piston type send steel ball, avoid empty sealer or repeat steel ball sealer.
● Use the air cylinder to seal steel ball, easy to adjust air pressure.
Technical Parameters(for reference)：
|
ITEM |
MAIN PARAMETERS |
|
Dimension |
L x W x H ≈1000x500x1800mm |
|
Weight |
About 0.15T |
|
Power supply |
AC220V/50HZ, 0.2KW |
|
Air source |
≥0.6Mpa, 30L/min |
|
Vacuum source |
≤ -0.09Mpa, 10L/S |
|
Applicable battery range |
L 80-150, W 15-40, H 100-210, Filling hole dia 1.3-1.8mm |
|
Capacity |
80-200PCS/H |
|
Action |
≥99% |
