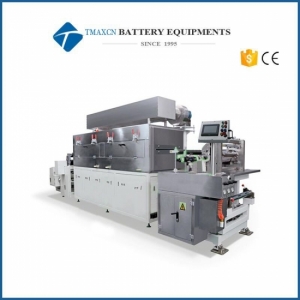

Large Lithium ion Battery Continuous Automatic Coating Machine

Model

Lithium ion Battery Coating Machine TMAX-SY300J

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

28000W

Warranty

One Year limited warranty with lifetime support

Max electrode width

300-400mm

Configuration

Put volume (with tension adjustment), coating, drying box 6m, main drive,

winding (with tension, rectifying);

Winding rectifying control precision

≤± 0.2mm

Baking oven

Stainless steel, 2M/section,

Dry temperature : RT-150℃, adjustable, With accuracy ±3℃

Coating speed

0-5m/min, adjustable

Coating accuracy

≤±0.003mm

Control pressure

0-25N, adjustable

Air compression

0.5-0.7MPa

Coating mode

Single face continuous coating

Application foil

Aluminum foil, Copper foil

Advantage

1 This machine is single surface continuous coating machine,

2 Drying oven is heated hot air circulation structure

3 Equipped with tension control, winding rectifying automatic control

4 All parts contacted with electrode with chrome plated or stainless steel corrosion resistance
