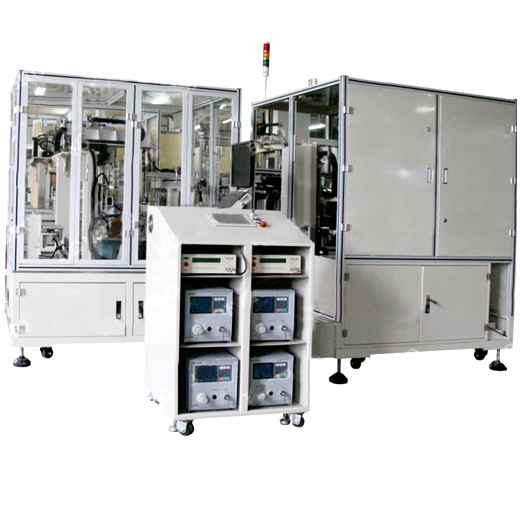

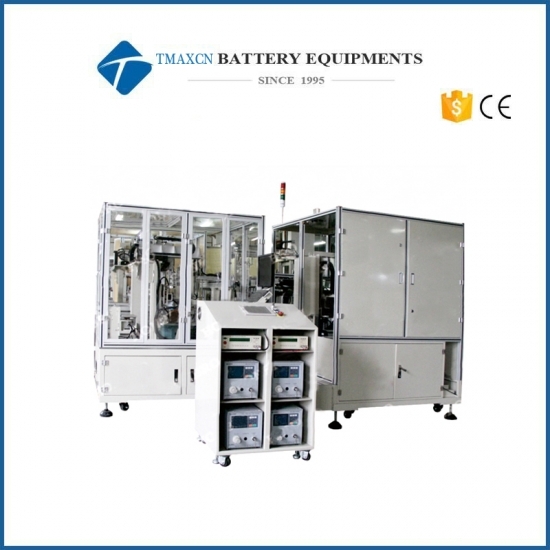

Large Fully-auto prismatic EV-battery cap welding & leak test machine
Model Number:
TMAX-A-024Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Large Fully-auto prismatic EV-battery cap welding & leak test machine
Functions
● Apply for EV-battery cap welding, insulation resistance test before & after welding, shell body air-leakage test, laser marking code and auto classification.
Features
● Insulation resistance test before & after welding● To match with different leakage test way according to the user request.
● Laser marking code on the battery rely on system test.
● Auto classification & collection.
Technical Parameters(for reference)：
|
ITEM |
MAIN PARAMETERS |
|
Dimension |
L x W x H ≈4500x2500x2000mm |
|
Weight |
About 2.5T |
|
Laser brand |
Rofin / IPG ( User defined) |
|
Welding way |
Continuous welding or single side welding |
|
Max power |
15KW( Adopt laser welding 2KW) |
|
Power supply |
To comply with the user’s country |
|
Air source |
≥0.6Mpa, 50L/min |
|
Vacuum source |
Equipment include vacuum source |
|
Applicable battery range |
L 60-250, W 18-60, H 80-200 |
|
Capacity |
Normal laser welding speed 120mm/s |
|
Test pressure |
-90～0Kpa |
|
Test resistance |
100K～50GΩ |
