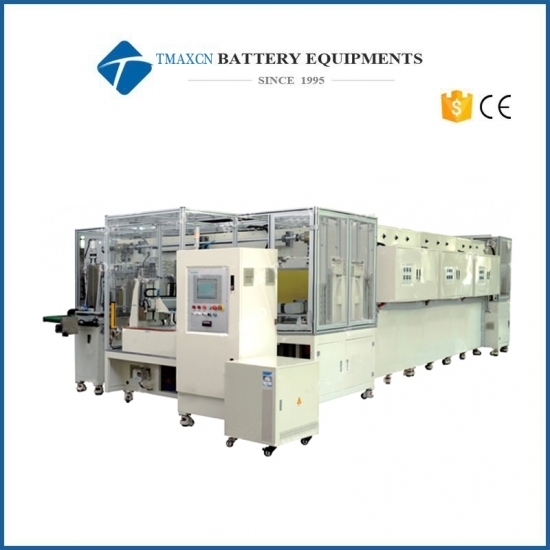

Large Fully auto baking tunnel furnace
Model Number:
TMAX-A-022Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION
● Baking fixture in precision positioning and auto calibration devices are removed from the institutions
● Baking jig locked by servo control
● Baking furnace and cooling furnace use plate chain conveyor, closed loop control
● Baking fixture tensioning force servo control, tensioning force within the touch screen settings, tensioning force accuracy ±0.25%
● Baking furnace temperature control precision of ±3 ℃ (except within one meter distance from the security door)
● After Baking the battery thickness accuracy: plus or minus 3.0% T (T is average thickness of the battery)
● After cooling, the temperature below 40 ℃ when Baking fixture
● Head component structure adopts movable roller structure, convenient maintenance, and dismantling
Large Fully auto baking tunnel furnace
Functions
● Suitable for auto load and unload Baking fixture, Baking oven, Baking furnace cooling, in order to achieve high temperature polymerization, standing.
Features
● Manual load materials to jig, manipulator clamp feeding to the Baking step by step from the rotary table● Baking fixture in precision positioning and auto calibration devices are removed from the institutions
● Baking jig locked by servo control
● Baking furnace and cooling furnace use plate chain conveyor, closed loop control
● Baking fixture tensioning force servo control, tensioning force within the touch screen settings, tensioning force accuracy ±0.25%
● Baking furnace temperature control precision of ±3 ℃ (except within one meter distance from the security door)
● After Baking the battery thickness accuracy: plus or minus 3.0% T (T is average thickness of the battery)
● After cooling, the temperature below 40 ℃ when Baking fixture
● Head component structure adopts movable roller structure, convenient maintenance, and dismantling
Technical Parameters(for reference)：
|
ITEM |
MAIN PARAMETERS |
|
Measures |
(L*W*H): 9800*3500*2350mm |
|
Weight |
About 10T |
|
Power |
AC380V/50HZ, 72Kw |
|
Air source |
≧0.6Mpa,150L/Min |
|
Vacuum source |
≤-85Kpa,60L/Min |
|
Applicable range |
L:50-180mm,W:30-130mm,T:2-10mm |
|
Capacity |
15-20PPM(Baking time:4 hour,4pcs in one time, Thickness≤5mm) |
|
Cold source |
Cooling water,10-18℃, head of delivery:20M |
|
Action |
≧99% |
