products

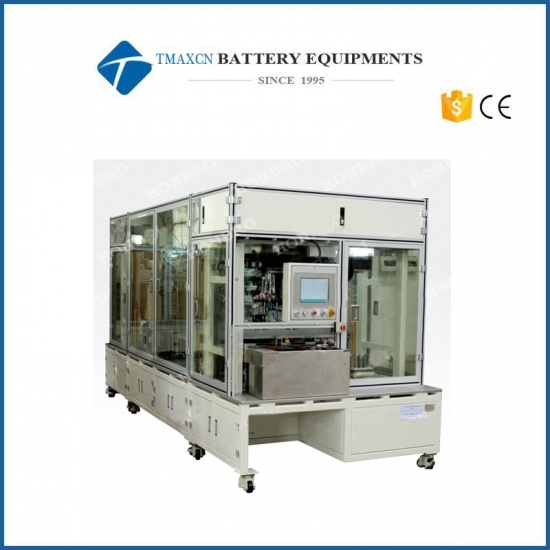

Large Automatic Electrolyte Filling Machine with Double Station
Model Number:
TMAX-A-010Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION
● Products: auto vacuum filler, standing, sealing.
● Injection pump and control box independent with equipment isolation convenient to adjust parameters, avoid pollution and corrosion.
● Head component structure adopts movable roller structure, convenient service, maintenance and dismantling.
● Equipment placed in drying room or common room, convenient install and dismounting transition part.
● Auto electrolyte-mixing system, remove air bubbles, prevent injected liquid drops.
● Injected electrolyte station using vacuum injection to ensure that the electrolyte instantly penetrate into the cell.
● Filler, static and pre-packaged merged into one station, smaller device convenient servicing and maintenance.
Large Automatic Electrolyte Filling Machine with Double Station
Functions
● This equipment is mainly used for soft package of liquid lithium ion battery vacuum filler vacuum encapsulation, etc. Implementation of soft packing lithium ion battery fluid injection, vacuum standing once, vacuum sealing, manual load/unload material, etc.
Features
● Products of manual feeding, manual injection fluid first and then weighing, scan code.● Products: auto vacuum filler, standing, sealing.
● Injection pump and control box independent with equipment isolation convenient to adjust parameters, avoid pollution and corrosion.
● Head component structure adopts movable roller structure, convenient service, maintenance and dismantling.
● Equipment placed in drying room or common room, convenient install and dismounting transition part.
● Auto electrolyte-mixing system, remove air bubbles, prevent injected liquid drops.
● Injected electrolyte station using vacuum injection to ensure that the electrolyte instantly penetrate into the cell.
● Filler, static and pre-packaged merged into one station, smaller device convenient servicing and maintenance.
Technical Parameters(for reference)：
|
ITEM |
Main parameters |
|
measures |
(L*W*H):1030*1200*2000MM |
|
Weight |
About 0.4T |
|
Power |
AC220V ±10% 50HZ/60HZ, 0.8KW |
|
Air source |
≧0.7Mpa,30L/S |
|
Applicable range |
H:40-170mm W:50-170mm T:2.5-12mm |
|
Vacuum source |
≧-95Kpa,80L/S |
|
Capacity |
4PPM |
|
Action |
≧98% |
|
Liquid injected volume |
0-50g |
|
Liquid injected precision |
≤±1% |
