Large Auto packaging & sealing production line
Model Number:
TMAX-A-020Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

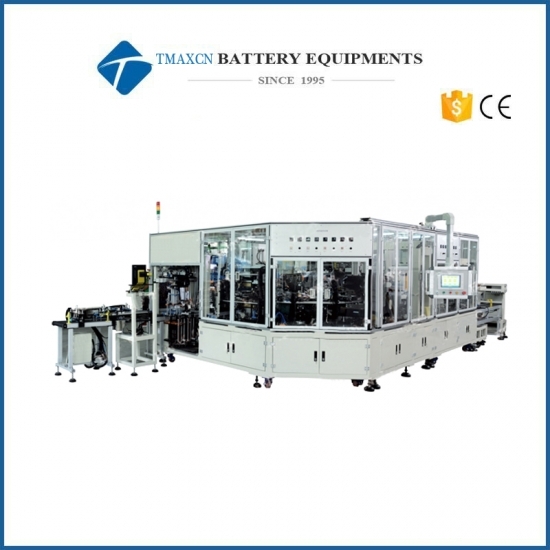

Large Auto packaging & sealing production line
Functions
● This equipment is suitable for soft package lithium battery fully automatic assembly. Mainly with aluminum membrane rolling, automatic Al film slitting automatically, automatic punching shell, automatic cutting, automatic turntable and shell automatic folded in half and automatically cut the top edge; drawstring bare batteries loading, bare batteries detected by CCD and separation, bare batteries automatic plastic positioning, bare batteries automatically into the shell, the top sealing (pole ear automatically correct) , lateral sealing, seal Angle, insulation test, fine cutting lateral and sealing, stenciling, and scan code and NG, sorting, and other functions.
Features
● Material automatic correction, aluminium film floating roll tension control automatically;● Gas rose axis vertical cantilever plate is placed;
● Aluminum film slitting;
● Fine cut top side and sealing;
● Servo punching shell and depth is adjustable;
● Bare batteries incoming CCD detection and separation;
● Cell round Angle with separate individual package;
● Pole Ear automatically correct;
● Test, stenciling, NG separation and independent place;
● Fine cut lateral and sealing.
Technical Parameters(for reference)：
|
ITEM |
ZDBZJ150 |
ZDBZJ150 |
|
Measures |
(L*W*H):8500*2700*2300mm |
(L*W*H):11100*3250*2300mm |
|
Weight |
About 4.5T |
About 5T |
|
Power |
AC380V/50Hz, 10Kw |
AC380V/50Hz, 10Kw |
|
Air source |
≧0.6Mpa,20L/S |
≧0.6Mpa,20L/S |
|
Vacuum source |
≤-0.09Kpa,5L/S |
≤-0.09Kpa,5L/S |
|
Applicable range |
H:55-150mm W:100-160mm T:2.5-10mm |
H:100-240mm W:120-210mm T:2.5-10mm |
|
Capacity |
≧16PPM |
≧15PPM |
|
Action |
≧99% |
≧99% |
