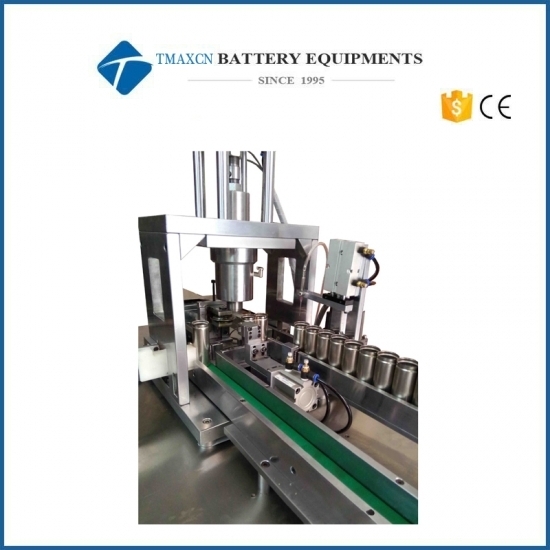

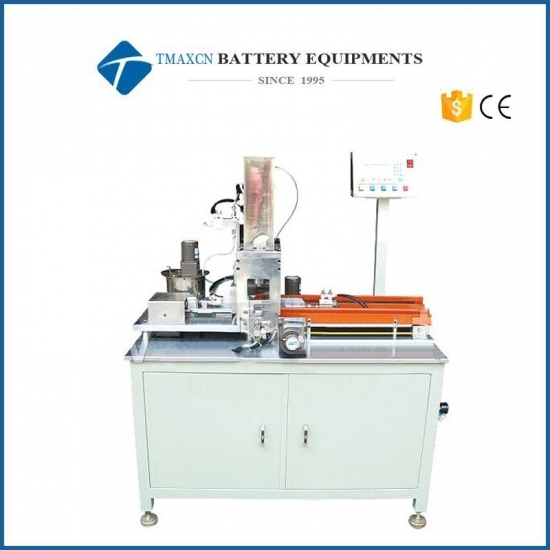

Large Auto Cylindrical cell Grooving Machine for Batch Processing
Model Number:
Tmax-grooving003Dimension(L*W*H):
W1080mm*D660mm*H1200Net Weight:
1000lbsCompliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Large Auto Cylindrical cell Grooving Machine for Batch Processing

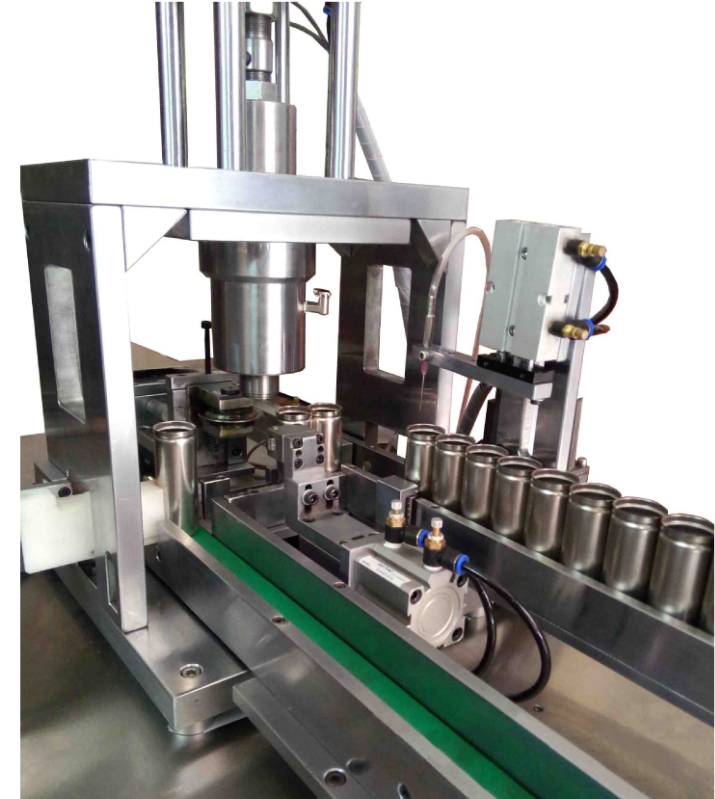

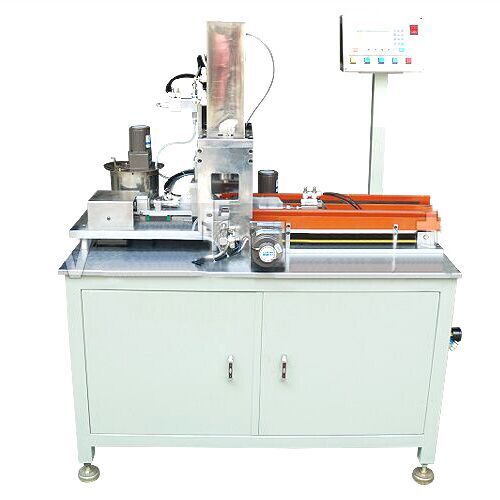

It is an auto grooving machine for cylindrical battery cases. It provides a continues workflow for case batch loading - neck grooving - case unloading without dedicated labor.
Advanced Features:
· Efficient batch loading/unloading mechanism with case feeding conveyor
· Horizontally positioned grooving blade ensures the most stable and accurate grooving
· Micrometer assisted grooving depth & height adjustment
· Ability to compensate the axial deformation of a cylindrical casing
· User-friendly human-machine interface with PLC touch screen control
· Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment
Specifications:
|
Working Voltage |
110/220V AC 50/60Hz |
|
Max. Power Consumption |
1KW |
|
Air Pressure |
0.5 MPa~0.8Mpa is required |
|
Compatibility
|
Standard grooving capability for 18650 case |
|
Control
|
User-friendly HMI with PLC touch screen control ensures easy program setup |
|
Grooving Dimensions
|
Micrometer assisted grooving depth & height adjustment · Depth: 1 - 2.0 mm · Width: 1 - 1.5 mm |
|
Grooving Accuracy |
+/- 0.1 mm |
|
Grooving Blade Life Span |
>1 million times |
|
Grooving Force |
6kgf/cm^2 |
|
Compression Ratio |
Percentage in height: 80% |
|
Productivity
|
· Material feeding conveyor is able to load upto 22 pcs per batch · 30 pieces per minute |
|
Product Dimensions |
W1080mm*D660mm*H1200mm |
|
Net Weight |
1000lbs |
|
Warranty
|
· One year limited with lifetime support · Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
