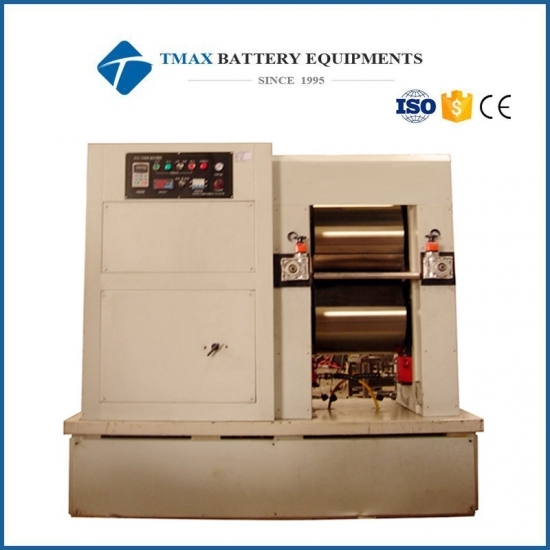

Large 400mm Oil Pressure Control Roller Press Machine
Model Number:
TMAX-703BInput Power:
7.5KWDimension(L*W*H):
2100*1150*1700mmNet Weight:
5TCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Large 400mm Oil Pressure Control Roller Press Machine
1 TMAX-703B system battery roll press machine is a high precision Oil pressure control roller press machine. It has dual rollers of 400mm dia.* 450mm width. This battery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing..
2 This model battery roll press machine is with 200T pressure, The operator adjust the press pressure to get best effect battery electrode density according to battery design.
|
Model |
TMAX-703B |
|
Type |
Vertical 2 Roll Press type |
|
Source voltage |
380V/50Hz |
|
Power |
7.5KW |
|
Warranty |
One year limited warranty with lifetime support |
|
Roller diameter |
Die * width=400*450mm |
|
Suitable electrode width |
400mm |
|
Speed |
7r.p.m |
|
Pressure |
200T |
|
Max rolling gap adjustment |
0-2mm adjustable |
|
Structure |
1 Roll surface roughness, surface roughness of 0.4um 2 Roll hardness: HRC62-65, roll conditioning: HB280-300, 18mm or higher quenching depth and roll cylindricity less than 0.003 mm 3 Adopt p52 precision bearings 4 Roll gap adjusting : automatic locking device, 0-2 mm is adjustable |
|
Dimension(L*W*H) |
2100*1150*1700mm |
|
Weight |
About 5T |
