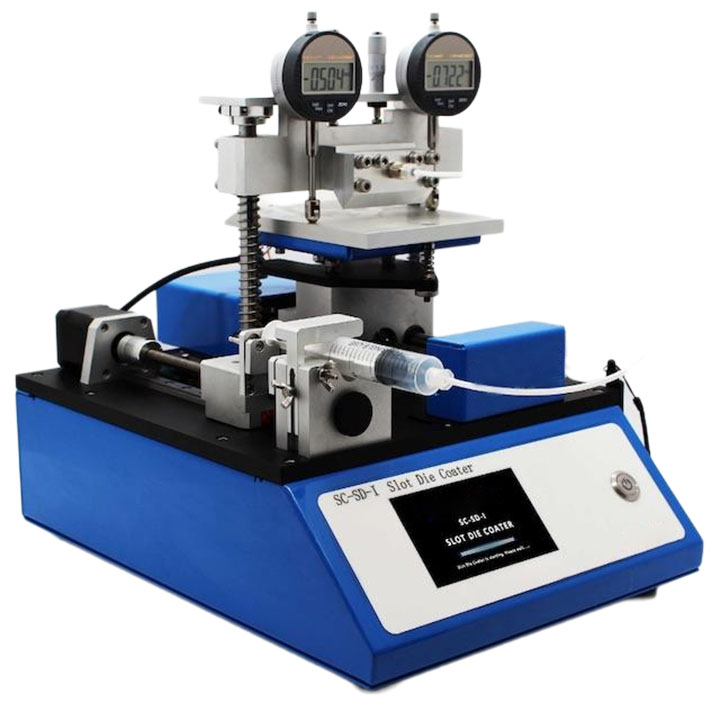

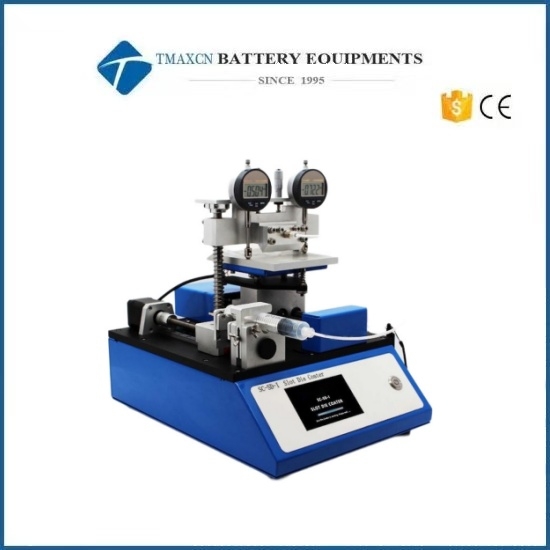

Laboratory Perovskite Solar Cell Plant 200℃ Benchtop Slot Die Coating Machine

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Key Features：

1. The stage can be heated, and the coating width is adjustable. Heating range: room temperature -200°C, width: 25-50mm.

2. Designed by the American team and assembled in China, it is cost-effective.

3. Product quality assurance, there are multiple after-sales centers around the world, including the United States, Hong Kong and Beijing.

Slot Die Coater Specifications （SC-SD-I）

Brand	TMAXCN
Origin	R&D by American team, production and assembly in Beijing
Slot-Die Head Coating Width	50 mm (maximum)
Slot-Die Shim Thickness	100 μm
Hotplate Temperature	200°C (maximum)
Stage Travel Length	100 mm (maximum)
Coating thickness range	1-1000 μm
Minimum Stage Speed	100 μm.s-1
Maximum Stage Speed	50 mm s-1
Minimum Syringe Speed	12 μm.s-1
Maximum Syringe Speed	5 mm.s-1
Maximum Head to Substrate Travel Distance	13 mm
Power Supply	DC 24 V, 6.2 A, via 100-240v 50/60Hz power adapter
Dimensions	Depth x Width x Height (360 mm x 280 mm x 190 mm)
Shipping Weight	＜10kg
Ambient temperature	0-40℃
Relative humidity	＜85%
Installation method	Place on a horizontal desktop
Warranty	1 year
