Laboratory Lithium Battery Slurry Electrode Film Coating Machine
Model Number:
TMAX-SlurryDimension(L*W*H):
430*300mmMax. Loading Capacity:
200WNet Weight:
20KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

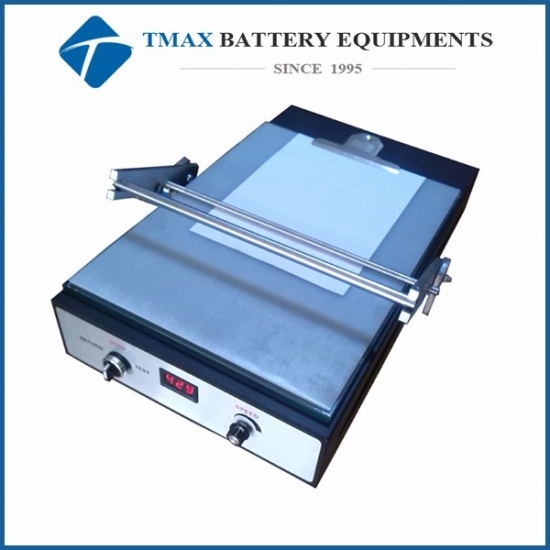

Laboratory Lithium Battery Slurry Electrode Film Coating Machine
TMAX-Slurry Film coating machine is lab Automatic Film Coater with glass bed as coating plate. It adopts OSP precision wire rod to with a larger range of coating range. This lab coating machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.
This Wire rod coating machine adopts precision extrusion type coating measuring rods coated film (the thinnest film coating thickness up to 1.5 um). It also can be used for Paper printing, film, adhesive tape production.
This model is without heating function, Heating lid is available at extra cost for drying .
|
Model
|
Film Coating Machine TMAX-Slurry
|
|
Working Voltage
|
110V AC or 208 - 240V AC 50/60Hz Single Phase
|
|
Power
|
200W
|
|
Traverse Speed
|
0 - 200 mm/sec variable
|
|
Max Coating Size
|
430*300mm (L*W)
|
|
Coating base size
|
570*340mm (L*W)
|
|
Platform
|
Glass bed for coating
|
|
Coating thickness
|
Coating film by precision wire bar (Thinnest coating film thickness up to 1.5um) |
|
Coating wire bar size
|
Diameter : 10mm, Length: 400mm, Effective coating width:300mm |
|
Product Dimensions
|
570mm(L) *340mm(W) * 100mm(H)
|
|
Net Weight
|
20kg
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Application Notes
|
Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here. 1. You may need a vacuum oven to dry the films after coating, 2. You may need a vacuum mixer to remove air bubbles inside the slurry and to make all coatings uniform, 3. You may need a Slurry Viscosity Tester to make coatings consistent. |
