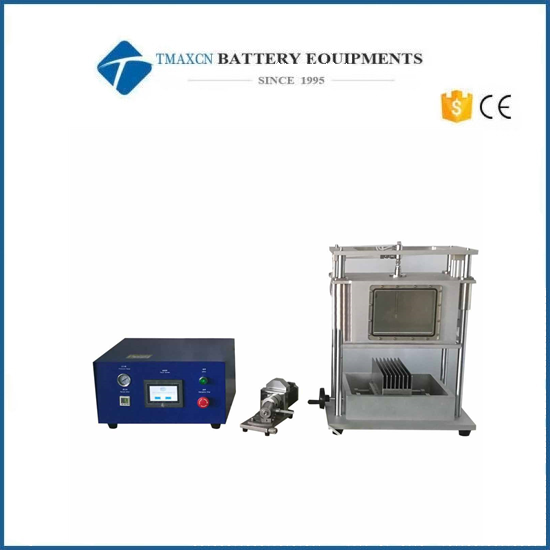

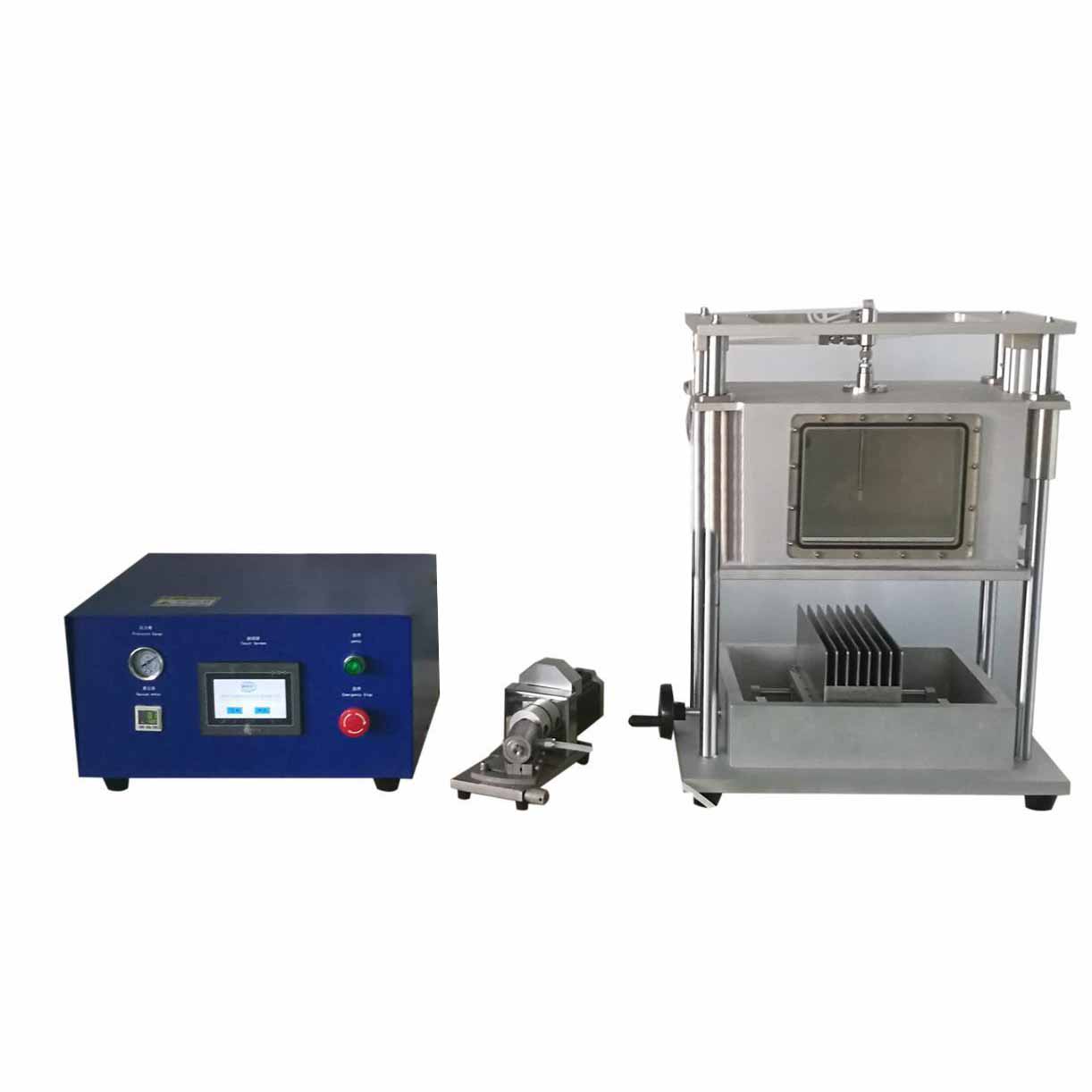

Laboratory Battery Electrolyte Vacuum Filling and Degassing Machine

Laboratory Battery Electrolyte Vacuum Filling and Degassing Machine

Introduction

It is suitable for the liquid injection and degassing procedures of battery capacitors. It adopts vacuum and then injects liquid and then degas still. The accuracy of the electrolyte, the consistency of absorption, and the high reliability are adopted.

Main features

*One machine includes liquid injection and degassing functions;

* Has extremely high measurement accuracy and repeat consistency;

* Vacuum first and then liquid injection, multi-station efficiency, accurate accuracy, convenient and reliable operation;

*High injection accuracy;

*The entrance and exit are connected by chemically resistant hoses;

*Can be operated in a glove box or a drying room;

*Exquisite and beautiful appearance, stable performance;

*PLC, touch screen operation, flexible parameters, high automation program;

Filling workflow

*Put the product into the vacuum chamber;

*Press the start switch, press down on the transparent sealed upper cavity, so that the battery is in a sealed vacuum cavity;

* Vacuum, after reaching the vacuum degree and the set time, the liquid will be injected automatically. After the filling of one product, the hand-operated worktable will switch to another product to inject the liquid, multi-function analogy.

*Then the system will automatically degas still;

*After degassing still, take out the product to complete.

Remarks: The vacuuming time and degassing time can be set according to the situation.

Main components of equipment

*Cylinder and solenoid valve, vacuum components: SMC/Taiwan Airtac

*Guide slider: Taiwan Shangyin/Intime

*PLC: Display and control

*Touch screen: display control

*Analog vacuum gauge: Panasonic

*Motor: Lei Sai

Environmental requirements

*Ambient temperature: determined by the customer's factory environment;

*Power supply: 220V, 50HZ, voltage fluctuation range: +10%～-10%;

*Compressed air: After drying, filtering and stabilizing: the outlet pressure is greater than 4.0kg/cm2; if it is placed in the glove box, the compressed gas used is the same as that in the glove box;

*Vacuum source: vacuum pump 2 liters/sec, above -98KPa, or pipeline vacuum (above -98KPa);

Technical parameters

*Suitable for lithium battery products, cylindrical cell or pouch cell;

*Includes two functions: filling and degassing;

*Degassing, low and high vacuum and time can be adjusted, and each time can be set to a maximum of 9999min.
