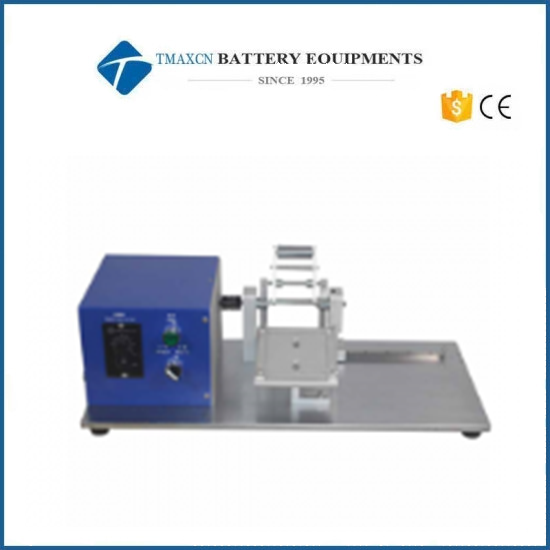

Lab Winding Machine For Electrode Assembly Of Li-ion Cylindrical Battery
Model Number:
TMAX-JR135Type:
Electrode Winding MachineNet Weight:
40kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION
Lab Winding Machine For Electrode Assembly Of Li-ion Cylindrical Battery

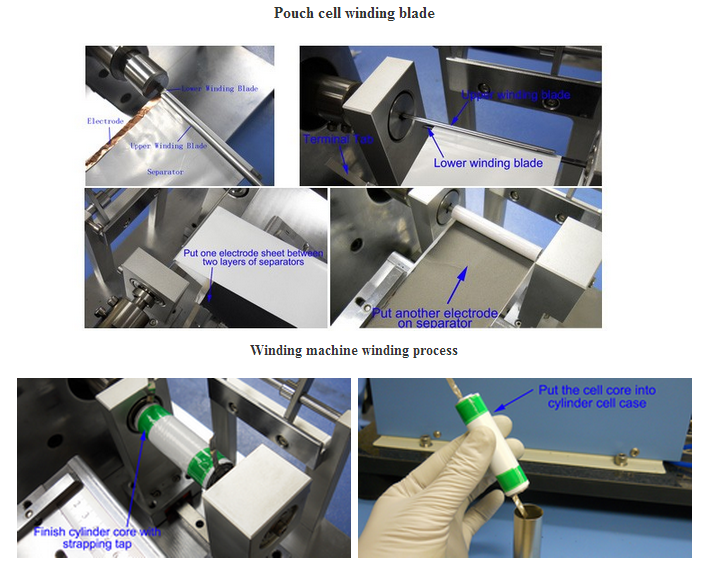

This winding machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.
*The up and down, left and right, front and back positions of the guide electrode slot ruler plate can be adjusted;
*Winding can be forward and reverse, winding stepless speed regulation;
*The machine is small in size, beautiful in appearance and easy to operate;

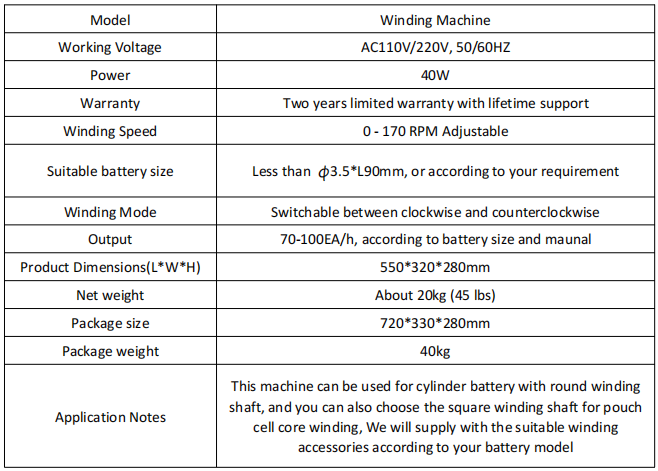

Specification
