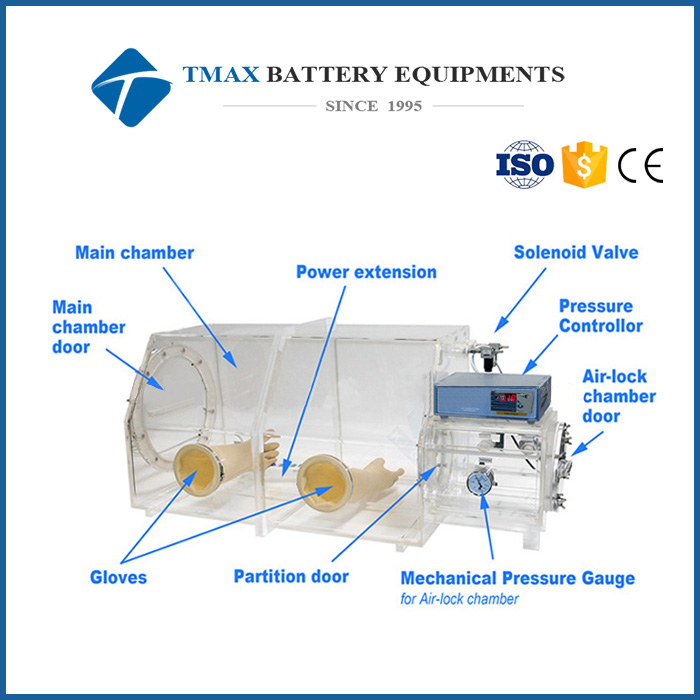

Lab Transparent Vacuum Glove Box with Pressure Control System

Lab Transparent Vacuum Glove Box with Pressure Control System

SPECIFICATION

In the process of scientific experiments, some substances in the air easily oxidation and deliquescence, which makes the test substance reaction and sample pre treatment very difficult, which influence the test process and test results.

Vacuum glove box (also known as vacuum inert gas operation box) effectively solves the easy oxidation and deliquescence of these problems, the device can be so that the test sample to the safety of putting in and taking out, and in anhydrous and anaerobic conditions ease of operation, reaction and testing, ensure that the normal scientific experiments.

Another: the operating room location: reinforcement of high 30mm high 30mm level before the foot room location: reinforcement of high 40mmGlove hole diameter: 139 (two) with a butterfly nut special wrench

Operation room is equipped with: stainless steel vacuum ball valve two (right side, before the class room at the back of the arrangement), two standby valve interface column (on the rear left, right, a), seal in line a (left side of the rear box equipped with a multi-function socket)

Before the room is equipped with a stainless steel vacuum valve, KF-25 interface with a blind plate a (behind the score), O 60/-0.10~0.15Mpa.

A piece of vacuum pressure gauge (upper middle)
