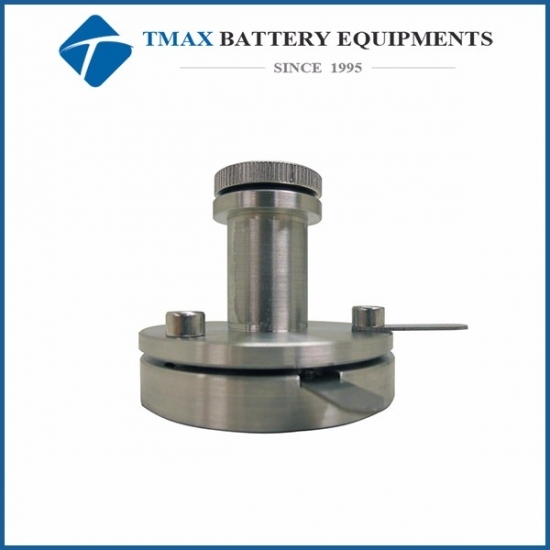

Lab Steel Two-Electrode Split Test Cell for R&D Battery: Optional Insert Size 5 - 24 mm Dia.
Model Number:
EQ-STCDimension(L*W*H):
5 - 24 Mm DiaCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Lab Steel Two-Electrode Split Test Cell for R&D Battery: Optional Insert Size 5 - 24 mm Dia.
1. EQ-STC split-able test cell is designed for R&D of rechargeable battery material.
2. It can accept various sizes of (10, 12, 15, 19, 20, and 24mm diameter) electrodes and separators and test the electrodes easily and quickly.
SPECIFICATIONS:
|
Structure |
Full stainless steel SS304 |
|
Max. Cell Thickness |
6mm (cathode+separator+anode) |
|
|
1. A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling 2. Sealed by electrolyte corrosive-proof PTFE O-rings (click picture below left to order spare ) 3. Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC. (click pic below right to order spare ) 4. Easy to separate after testing 5. Small enough to be put in and taken out from a glove box |
|
Max. Working Temperature |
220 ºC |
|
Optional |
1. Please select the insert size in the option bar. 5, 10, 12, 15, 19, 20, and 24 mm diameter inserts are available. 2. Anti-corrosive Au coating on the cell internal and inserts is an option. |
