Lab Small Diamond Wire Cutting Cutter Machine

Model Number:
TMAX-STX-202A
Type:
Automatic
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

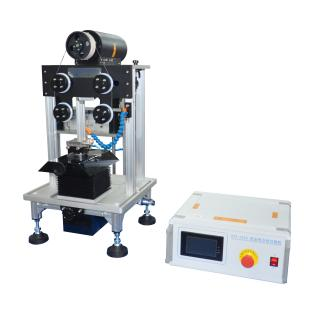

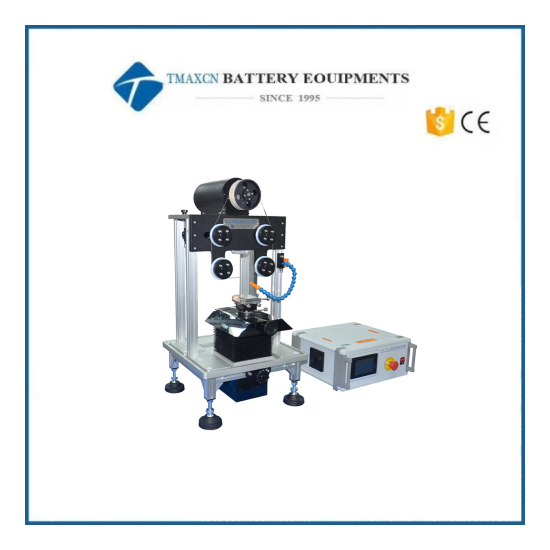

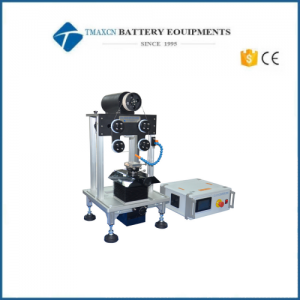

Lab Small Diamond Wire Cutting Cutter Machine

Product introduction

STX-202A small diamond wire cutting machine is specially designed for material researchers, for the precise cutting of brittle material samples, can slice, cut, square, etc., rotary table can also cut a certain Angle of the sample. Materials that can be cut include ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composites, and biomedical materials. This machine is a diamond wire cutting machine that can be used for continuous cutting. After the cutting program is set, the sample is continuously fed without manual adjustment. The size accuracy of the sample after cutting is high, within the range of ±10μm. The cutting line adopts the circulating motion mode of a single line, the length of the line can be used is long, the service life of a line is long, and the cutting efficiency is improved. The tension wheel adopts the spring tension mode, the spring rigidity is strong, the tension force is large, the tension force remains unchanged during the cutting process, and the tension of the diamond line is maintained. When it is used for ultra-thin precision cutting, the thickness of the slices (within about 1 inch) can reach 0.08mm.

Technical parameter

Product name

Small diamond wire cutting machine

Product model

STX-202A

Installation condition

1. The equipment is required to be used under the altitude of 1000m, the temperature of 25℃±15℃, and the humidity of 55%Rh±10%Rh.

2. Water: None.

3. Power: AC220V 50HZ.

4. Gas: No.

5. Table size: 1000mm600mm700mm.

6. Ventilation device: required.

Main parameter

1, power supply voltage: 220V 50Hz; Maximum power: < 100w

2. Spindle speed: 2rpm-260rpm, adjustable

3. Control system:

① Manual control:

Y, Z axis speed range 1-40mm/min

② Automatic control:

Y-axis feed length 0.01-50mm;

Z-axis feed speed 0.05mm-40mm/min

Z-axis feed length 1-60mm;

Automatic cutting times 1-99;

4. Total length of cutting line: 20m

5, two guide wheel inner distance: 95mm

6, Y-axis stroke: ≤50mm

7. Z-axis stroke: ≤60mm

8, two-dimensional fixture: horizontal rotation 0-360°, left and right Angle ±20°

9, load plate size: 80mm×51mm

10, cutting depth: ≤50mm

11, cutting the largest sample size: Ø50mm×50mm

Product specification

Dimension: 414mm×500mm×750mm;

Weight: 40kg

Application

1, ceramic materials: alumina ceramics, zinc oxide ceramics, zirconia ceramics, target ceramics,

Honeycomb ceramics, semiconductor ceramics, conductive ceramics, non-conductive ceramics, etc.;

2, crystal materials: graphite, silicon crystal (solar polysilicon, monocrystalline silicon), sapphire,

Alumina crystal, infrared glass crystal, alumina crystal, silicon carbide crystal, cesium iodide crystal, etc.;

3, glass materials: sulfur glass, optical glass, quartz glass, infrared glass, glass tube, etc.

4, metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and other metals and alloys, non-ferrous metals (zinc sulfide, ferrite);

5, composite materials: PVC plate, carbon fiber composite materials, glass fiber composite materials, etc

6, rock material: natural rock, jade, meteorite, Peicui, agate and other precision cutting;

Precision slicing of various high-value materials; Geological light slice, geological thin slice (sedimentary rock, magmatic rock, metamorphic rock, ore) etc.

7, thermoelectric materials: bismuth telluride, lead telluride, silicon germanium alloy, etc

8, infrared optical materials: zinc selenide, zinc sulfide, silicon, germanium and other crystals

9. Biomedical materials: biopsied specimens

(Human animal organs, jaw soft and hard tissue combined sections, implant observation, tooth crown bridge, teeth and other histological specimens);

Orthopaedics soft and hard tissue section (femur, hip, vertebra and other live tissue and hard tissue, bone tissue samples with implants, etc.);

Cardiovascular and cerebrovascular stent sections, stone sections and other medical tissue sections;

...

Note: The material hardness is less than diamond line can be precision cutting.
