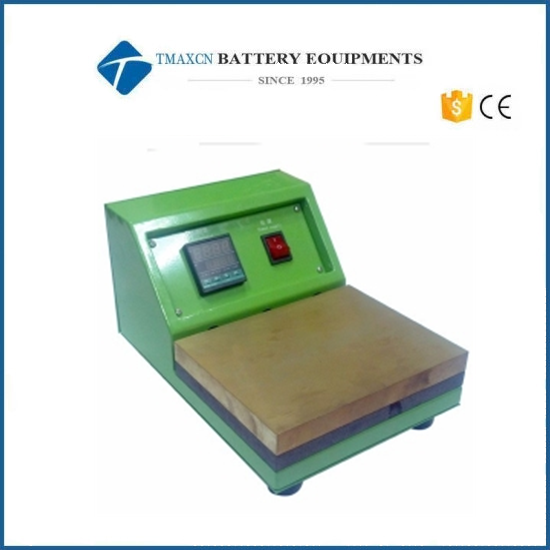

Lab Pouch Cell Edge Ironing Machine
Model Number:
TMAX-TP200Input Power:
20WDimension(L*W*H):
L280*W200*H165mmNet Weight:
20KgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Lab Pouch Cell Edge Ironing Machine
Introduction
TMAX-TP200 is mainly used for ironing and shaping soft packaging lithium batteries after folding
Main Features
1. Imported thermostat accurately controls the temperature of the heating plate, and the temperature is adjustable from room temperature to 250 degrees;
2. Unique safety protection and anti-scalding design, the temperature of the ironing table can be adjusted and set through the temperature controller panel button;
3. The sealing platform is made of copper material, with good heat transfer effect, saving power consumption and improving work efficiency;
4. Can be applied to different specifications of product batteries;
5. Beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
6. Small size, smooth and even, beautiful appearance of ironed edges;
SPECIFICATIONS
|
Edge platform size |
L200mm*W155mm |
|
Ironing temperature |
0～250±2℃ Temperature adjustable digital display |
|
Heating tube |
250W |
|
Power supply |
AC220V/50Hz |
|
Power |
1.5KW |
|
Dimensions |
L280x W200x H165mm |
|
Weight |
20kg |
|
Heating mechanism |
with copper heating workbench |
|
Electrical and standard parts |
Thermostat: Omron; Solid state relay: Omron |
