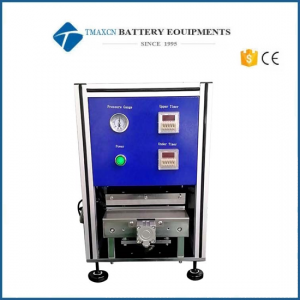

Lab Pouch Cell Edge Folding Machine
Model Number:
TMAX-ZP200Input Power:
20WDimension(L*W*H):
L320*W300*H420mmNet Weight:
31KgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Lab Pouch Cell Edge Folding Machine
Introduction
TMAX-ZP200 is widely used in the final steps of pouch cell battery pilot-scale production line to ensure a smooth, neat and tidy casing edge.
Main Features
*The folding width can be adjusted according to the needs of the battery.
*Air pressure and speed can be adjusted according to the process requirements.
*Adopt foot pedal operation switch, which is reliable, convenient and fast.
*The frame is assembled with profile and baking varnish sealing plate, the equipment is exquisite, compact and beautiful in appearance.
Instructions
Put the product into the position to be folded, press the tact switch, and the hemming mechanism is driven by the cylinder to fold the aluminum laminated film.
SPECIFICATIONS
|
Fold width |
Adjustable |
|
Speed |
About 300 times/h |
|
Folding knife length |
200mm |
|
Effective fold width |
＞1mm |
|
Power |
AC220V/50Hz |
|
Air source |
0.5MPa～0.8MPa |
|
Dimensions |
L320*W300*H420mm |
