Lab Planetary Vacuum Mixer Machine For Battery Lab Research

Model Number:
TMAX-XJB
Type:
Planetary Mixer Machine
Dimension(L*W*H):
500ml
Net Weight:
About 35kg
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

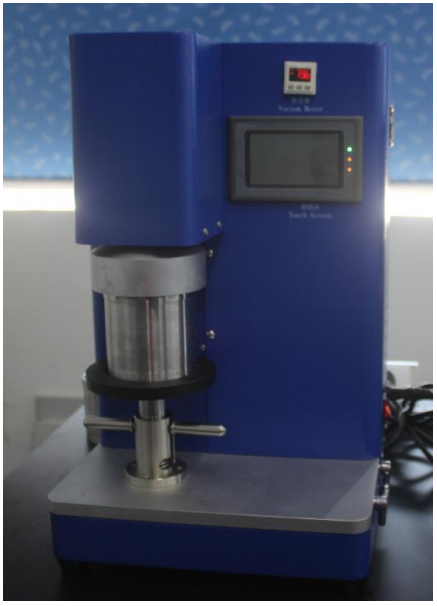

Lab Planetary Vacuum Mixer Machine For Battery Lab Research

This product is a high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the positive and negative slurry mixing process in the battery experiment process, as well as the mixing of powdered materials and various ceramics; because the mixing is completed in a vacuum state, it is bubble-free, improve the filling and compactness of the material.

Main features

*Vacuum environment, effectively eliminate the bubbles produced in the process of mixing. The machine has its own vacuum system;

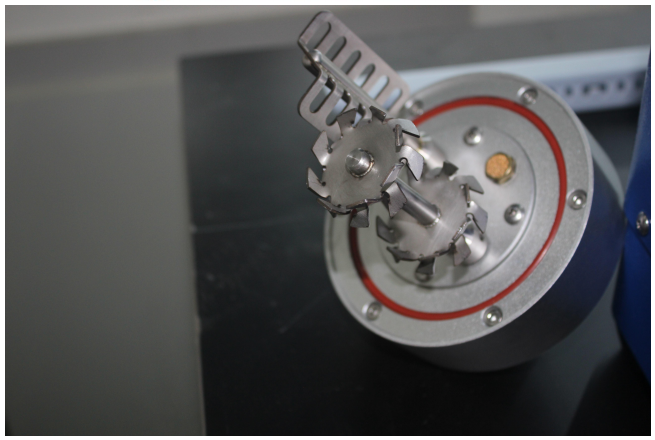

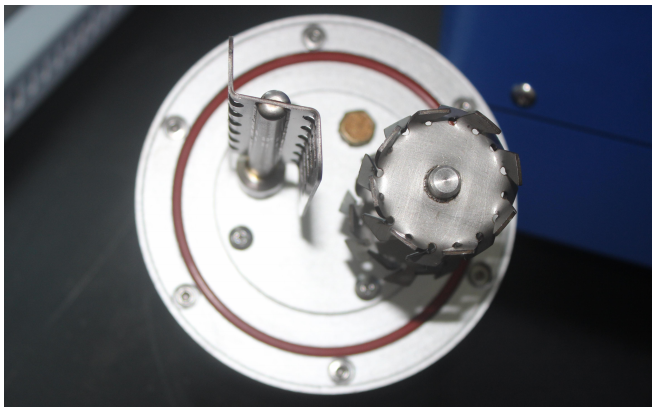

*The equipment is preferred to be equipped with double shaft planetary agitator and single shaft blade agitator. Different forms and combinations of mixing shafts are configured according to the size of the mixing tank, so that the materials are tossed up and down and around, and the slurry mixing is fast and uniform

*The design of positive and reverse stirring function can realize high-speed mixing of high viscosity slurry with good mixing uniformity. The mixing motor adopts PLC frequency speed regulation of stepping motor, which can select different speed and torque according to different process and viscosity, and can operate at multi-stage speed, and set the stirring speed and time of each section;

*Multi stage speed operation can be carried out, and the stirring speed and time of each section can be set;

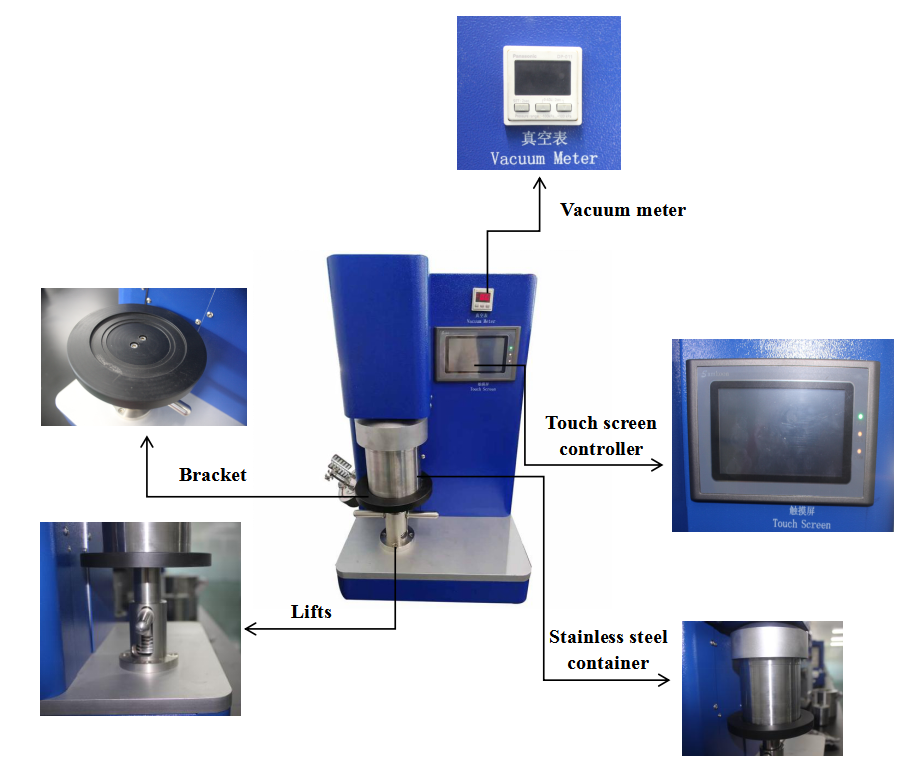

*Bracket design, convenient operation, ensure the safety of vacuum mixing process;

*Small size, can save space;

*Exquisite appearance, solid geometry design, simple and beautiful;

vacuum mixer
