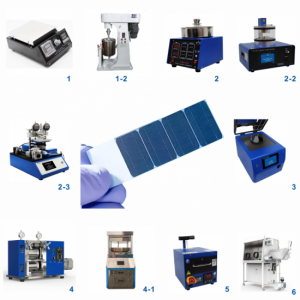

Lab Perovskite Solar Cell Production Research Machine Line

Process

Equipment Name

Model

Website Link

Solution Preparation

Magnetic stirrer

TMAX-SC-MS-I

Planetary centrifugal mixer

TMAX-ITT-300SS

TiO2 Coating

Vacuum Spin Coater with Plate Holder

TMAX-4A

https://www.battery-equipments.com/manual-vacuum-spin-coating-machine-with-plate-holder-suitable-for-4-inches-substrate-for-perovskite-solar-cell-research_p1469.html

DC or RF High Vacuum Magnetron Ion Sputter

TMAX-650MH

Perovskite Coating

Bench-Top Ultrasonic Spray Pyrolysis Coating Unit with 6"×6" Heating Plate up to 500C

TMAX-MSK-USP-02

 https://www.battery-equipments.com/laboratory-500-benchtop-ultrasonic-spray-pyrolysis-coating-machine-for-perovskite-solar-cell-line_p1476.html

Vacuum Slot Die Coating Machine

TMAX-MSK-AFA-PD100

Spiro-OMeT AD Coating

Vacuum Spin Coater with Plate Holder

TMAX-4A

Slot die coater

TMAX-SC-SD-I

IZO Coating

Liquid crystal screen magnetron sputtering instrument

TMAX-SC-SU-I

Film Rolling

Lab Hot Roll Press Calender Machine for Rolling Coated Substrate

TMAX-DG

Automatic hot press with multi-segment programming function

TMAX-RYJ-600ZG

Substrate Cleaning

Ultraviolet ozone cleaning machine

TMAX-SC-UV-I

Plasma cleaning machine

TMAX-SC-PE-I

Film Drying

High specification vacuum dryer(Equivalent to the ossila brand in the United States)

TMAX-SC-H-II

Note:

Substrate cleaning can be divided into pre-coating cleaning and post-coating cleaning:

Uv ozone cleaning machine is used to remove impurities on the surface of the substrate, and the developer is usually used for cleaning after spin coating (this step requires the use of automatic glue dropping function and liquid leakage function).

Dryer is the customer after spinning coated the sample, put the sample into the dryer to make the film rapid molding, this can be based on customer needs, usually the solution viscosity of high film can be quickly formed without the need to use the dryer, the solution viscosity is thin difficult to form a film, you need to use the dryer.
