Lab Hydraulic Press Parts Special Shape Mold
Model Number:
TMAX-SMCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

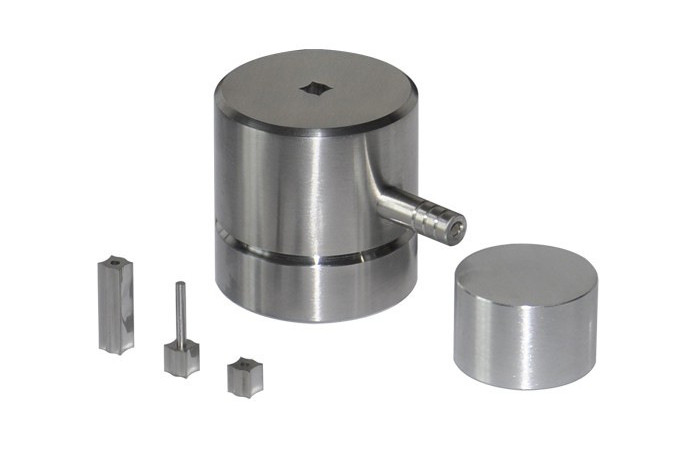

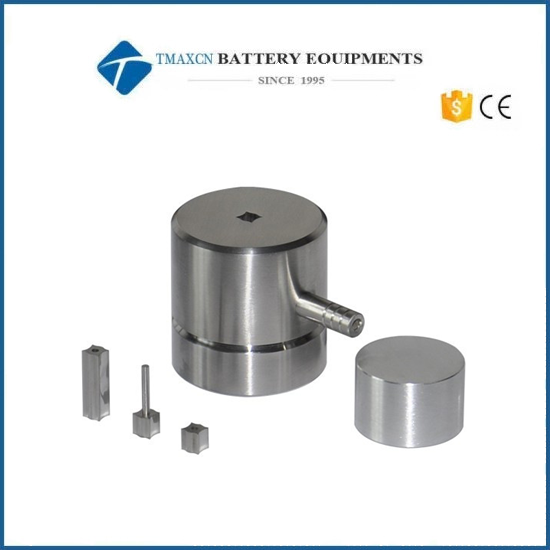

Lab Hydraulic Press Parts Special Shape Mold
This series laboratory spherical molds are often used in the pharmaceutical industry and small batch testing. Commonly used mold pressing size: diameter Ф3-20mm, height 1-20mm, bulk powder height: 15-35mm, used in laboratories and other industries to sample powder The compression molding is spherical or cylindrical. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer n
eeds.
Specifications
|
Name |
special mold |
|
Actual drawing of molding sample |
|
|
Compressible sample shape |
Various shapes, various angles, various radians, customized drawings |
|
Common mold specifications |
Ф6、Ф8、Ф10、Ф12、Ф15、Ф20、Ф30mm etc. |
|
Mold material |
Alloy tool steel: Cr12MoV (can be customized hard alloy steel) |
|
Hardness of die indenter |
HRC60-HRC62 |
|
Mold cavity depth |
40mm |
|
Mould dimensions |
Ф53×120mm |
|
Mould weight |
1.4kg |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
