Lab Hydraulic Press Parts Cylindrical Cemented Carbide Mold

Model Number:
TMAX-CCCM
Compliance:
CE certificate
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

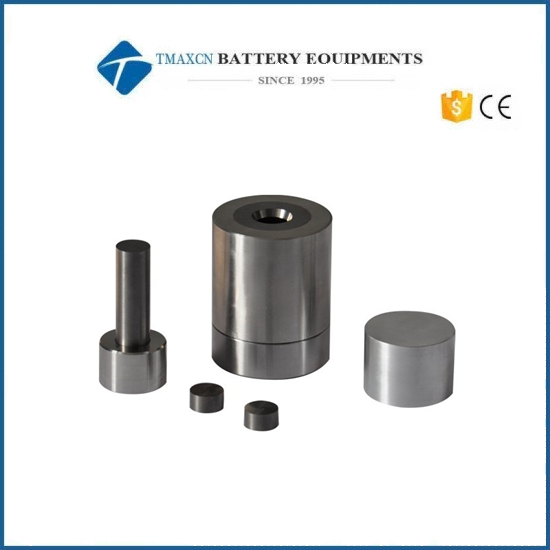

Lab Hydraulic Press Parts Cylindrical Cemented Carbide Mold

Cemented carbide molds are also called tungsten steel molds and tungsten carbide molds. Cemented carbide is an alloy material made of hard compounds of refractory metals and bonding metals through powder metallurgy. Cemented carbide has high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance and other properties, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500 ℃. It still has a high hardness at ℃ and is known as "industrial teeth". It is used to manufacture cutting tools, knives, cobalt tools and wear-resistant parts, etc., and is widely used.

Specifications

Name	Cemented carbide mold
Actual drawing of molding sample
Compressible sample shape	Round slices, cylinders, etc.
Common mold specifications	Φ3、Φ5、Φ6、Φ8、Φ10、Φ13、Φ15、Φ18、Φ20、Φ22、Φ25、Φ30mm
Mold material	Cemented carbide: YT15
Hardness of die indenter	HRC85-HRC90
Sample size (≤)	Ф3-Ф13mm	Ф12-Ф20mm	Ф22Ф30mm	Ф31-Ф40mm
Mold cavity depth	30mm	40mm	45mm	--
Mould dimensions	Ф43×93mm	Ф53×120mm	Ф73×133mm	--
Mould weight	0.78KG	1.8KG	3.8KG	14kg
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

cylindrical cemented carbide mold

battery equipment
