Lab Hydraulic Press Parts Bidirectional Pressurized Cylindrical Mold
Model Number:
TMAX-BPCMCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

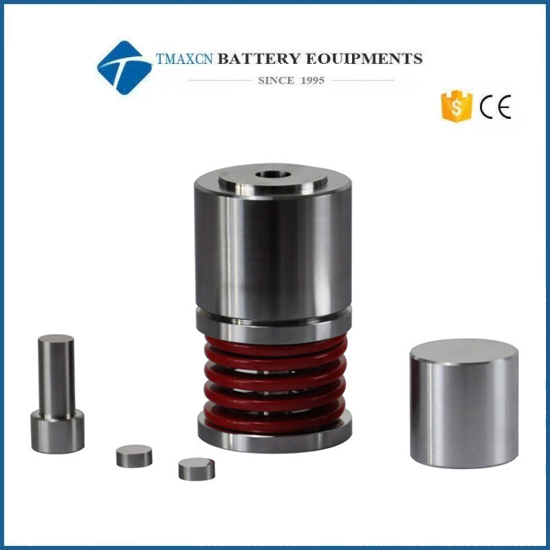

Lab Hydraulic Press Parts Bidirectional Pressurized Cylindrical Mold
Bidirectional pressurized cylindrical mold presses up and down, and applies pressure in both directions, so that the density of the pressed powder sample is better, and it is suitable for users who have higher requirements for the density of the pressed powder sample. The two-way pressure is combined with the design of the opening mold, that is, the problem of the sample not forming due to the expansion and deformation of the sample during the unmolding process is solved by quickly disassembling the mold jacket. Common die size: Ф3-Ф20mm; other special die size, specifications, shape, material, etc. can be customized according to customer needs.
Specifications
|
Name |

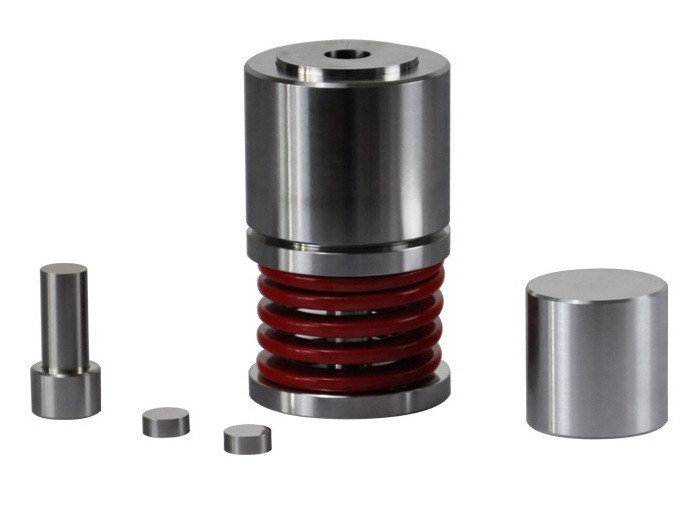

Bidirectional pressurized cylindrical mold |
|
Actual drawing of molding sample |
|
|
Compressible sample shape |
Various cylindrical, square and other shapes, customized according to drawings |
|
Common mold specifications |
Ф6、Ф8、Ф10、Ф12、Ф13、Ф15、Ф18、Ф20mm etc. |
|
Mold material |
Alloy tool steel: Cr12MoV (can be customized hard alloy steel) |
|
Hardness of die indenter |
HRC60-HRC62 |
|
Mold cavity depth |
40mm |
|
Mould dimensions |
Ф88×175mm |
|
Mould weight |
3.0kg |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
