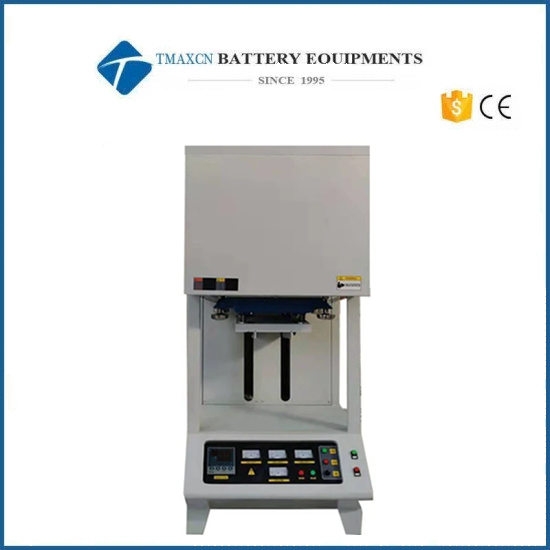

Lab 1600C Lifting Furnace Elevator Atmosphere Furnace

Model Number:
TMAX-SJF1600
Dimension(L*W*H):
660X675X1380mm
Max. Loading Capacity:
265KG
Compliance:
CE compliant
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Lab 1600C Lifting Furnace Elevator Atmosphere Furnace

1) The furnace can be spread on all sides, and the temperature field is more balanced.

2) It is convenient to take the materials, especially at high temperatures. After the materials are lowered out of the furnace, the user can take them from the tray, so that there is no radiant heat from the furnace to avoid burns.

3) There are four-bar support around the tray, and the material is very stable on the tray.

4) The furnace door is at the lower part of the furnace, where the temperature is the lowest, which is conducive to the sealing of the sealing ring and prolong the life of the sealing ring.

Specifications

Model	TMAX-SJF1600-I	TMAX-SJF1600-III
Power	7KW	13KW
Chamber size(DXWXH)	200X200X200mm	300X300X300mm
Boundary dimension(DXWXH)	660X675X1380	710X725X1480
Net weight	265	310
Supply voltage	220V	380
Phase	Single phase
Heating element	MoSi2 heating element
Control mode	Using Yudian program temperature control instrument 1. 30-segment program temperature control intelligent PID adjustment. 2, with over-temperature protection, broken couple protection. When the temperature is too high or the couple is broken, the electric furnace heating circuit is automatically cut off. (When the temperature of the electric furnace exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will automatically open. The main circuit is disconnected, the ON light on the panel goes out, the OFF light is on, and the electric furnace is limitedly protected) 3. With 485 communication interface (standard configuration when purchasing software). 4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is off. 5.The meter has the function of temperature self-tuning
Heating rate	≤20 ℃/ Min
Recommended rate of temperature rise	10℃/ Min
Furnace material	Model 1700 alumina polycrystalline fiber can be imported furnace material from Japan (additional charge is required when selecting imported furnace material)
Control accuracy	+/- 1 ℃
Maximum temperature	1600 ℃
Rated temperature	1550 ℃
Surface temperaturerated temperature	≤45 ℃
Thermocouple Type	B
Trigger	Phase shift trigger (with soft start and current limit function) Current limiting function: No matter how to adjust the heating time, the secondary current of our electric furnace after passing through the transformer is limited to 160A, which has limited protection of the equipment, no matter how you operate, it will not burn out the equipment. Soft start function: the current will increase slowly when starting up, and the impact on the heating element is small, which is beneficial to the extension of the life of the heating element.
Electric appliance	Zhejiang chint
Silicon controlled	· 106/16E SEMIKRON
Safety system	A travel switch is installed on the furnace door. When the furnace door is lowered, the power supply is automatically cut off to prevent the risk of electric shock from hitting the heating element.
Identification
Travel switch	When the lifting lever reaches the highest or lowest point, the travel switch will automatically cut off the lifting lever, so as not to rise or fall too much
Jacking system	Automatic lifting stainless steel electric push rod is adopted. After pressing up or down button, the material will rise or fall with the lifting tray
Power of electric push rod	150W
Lifting rate of electric push rod	420mm/ Min

1) Phase shift trigger (with soft start and current limit function)

2) Current limiting function: No matter how the heating rate is set, the secondary current of our electric furnace is always limited to 170A, which effectively protects the equipment. Thanks to the current limiting function, the furnace door can be opened at high temperatures. If you are using an electric furnace, you need to limit the heating rate of the furnace during the heating process (for example, it should not exceed 3 °C/min after 1400 °C), that is, use a non-current limiting trigger. If the heating rate is set incorrectly or the heating rate is too fast, the current will be very large and the device will trip or burn out.

3) Soft start function: the current will increase slowly when starting, and the impact on the heating element is small, which is beneficial to the extension of the life of the heating element.

4) Protection function: If the current exceeds the limit current, the trigger will automatically cut off the trigger function to cut off the current protection furnace.
