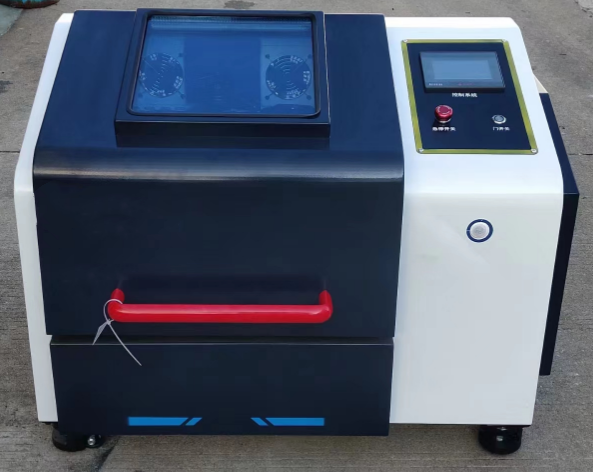

High-Energy Vertical Planetary Ball Mill With Cooling Air Controlled

Model

PBM-4

Ball Milling Jar Volume (ML)

Compatible with 50ML-1000ML ordinary planetary tank, 50ML-500ML vacuum tank.

Material of ball milling jar

Zirconia, alumina, stainless steel, nylon, polyurethane, PTFE, etc

Maximum charge per can

Material and grinding medium not exceeding two-thirds of the volume

Feed particle size

Less than 10 mm for crunchy materials, less than 3 mm for others

Discharge particle size

Up to 0.1 micron minimum (depending on material characteristics)

Master disk

Diameter 400, thickness 60, all aluminum alloy material, fast heat dissipation, not easy to deform

Rotational speed

Maximum revolution 35 ~ 400rpm, maximum rotation 70 ~ 800rpm

Rotational speed ratio (revolution: rotation)

1:2

Speed regulation mode

Variable frequency speed regulation

Planetary disk transmission mode

Gear drive

Propeller shaft handling method

Nitriding treatment process after quenching and tempering, wear-resistant and not easy to wear, average life of more than 8 years

Lubrication method

Liquid oil lubrication, the oil can be changed once every 2 years to reduce noise and gear wear

Canister locking method

The three-claw self-locking device, patented by our company, is benchmarked against the products of German Flying Spur Company. The force of the locking tank is more balanced, and there is no risk of loosening the lock and throwing the tank, thus protecting the safety of the operator to the greatest extent.

Operating voltage

Single phase 220V, 50HZ

Host motor power and frequency conversion power

0.75 KW (motor brand is Dedong, frequency converter brand is Delixi)

Working style

Two or four tanks working simultaneously

Maximum continuous working time

72 hours (timer 0-9999h)

Program control

Better human-machine interface integration (touch screen configuration), you can freely set the total setting, forward rotation, reverse rotation, and interval standby time, run alternately repeatedly, and save ball milling parameters to call at any time. You can also program different rotations in different time periods. Set ball milling parameters, and provide real-time alarms for overcurrent, overvoltage, overload protection and other operating equipment.

View window

Extra large double-layer vacuum tempered glass viewing window, with a strength of over 3mm steel

Door lock

Powerful electromagnetic lock, the safety door cannot be opened during operation, and the safety door cannot be operated when it is opened

Illumination

The grinding cavity is equipped with lighting LED lamp and human body induction switch.

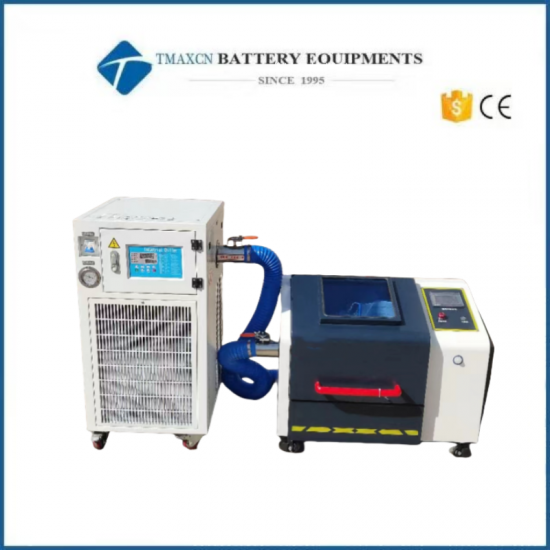

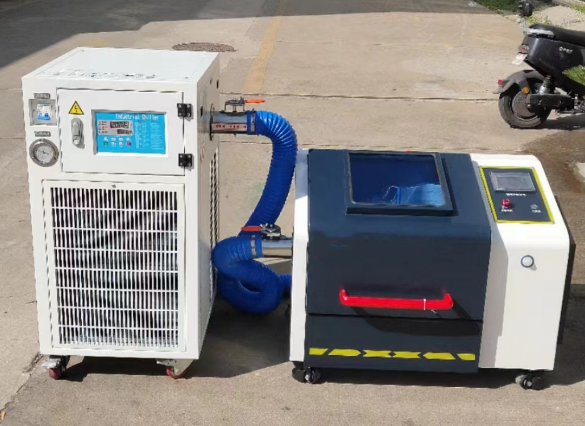

Cooling device

External air cooler, 5 degrees cold air circulation, reduce ball milling temperature

Equipment Reference Size (MM)

870 (L) * 550 (W) * 715 (H)

Equipment reference weight (KG)

About 108
