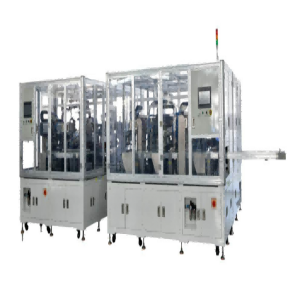

Fully Automatic Cell Welding Machine For Pouch Cell Production
Model Number:
TMAX-ZTH-07Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western Union
Wechat:13506084915
Fully Automatic Cell Welding Machine For Pouch Cell Production

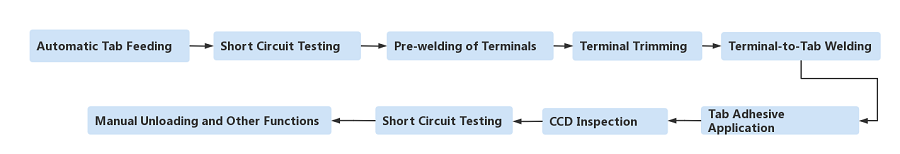

Workflow
Specification
|
Project |
Parameters |
|
Production efficiency |
150 type ≥12ppm; 300 type ≥8ppm |
|
Pole position accuracy |
±0.3mm |
|
Adhesive position accuracy |
±0.5mm |
|
Qualification rate |
≥99% |
|
Crop rate |
>98% |
|
Dimension |
W6000x L4000x H2350mm |
|
Weight/load |
>750Kg/M2 |
|
Power supply |
AC380V three-phase;voltage fluctuation±10%;power:30KW;frequency:50Hz |
|
Compressed air |
0.5~0.7Mpa ( 5~7kgf/cm2), dosage 200L/min |
|
Model |
TMAX-ZTHHJX-150 |
TMAX-ZTHHJX-300 |
|
Cell length |
45~150mm |
120~300mm |
|
Cell width |
35~100mm |
80~200mm |
|
Cell thickness |
3~10mm |
4~12mm |
Production Assembly Plant
