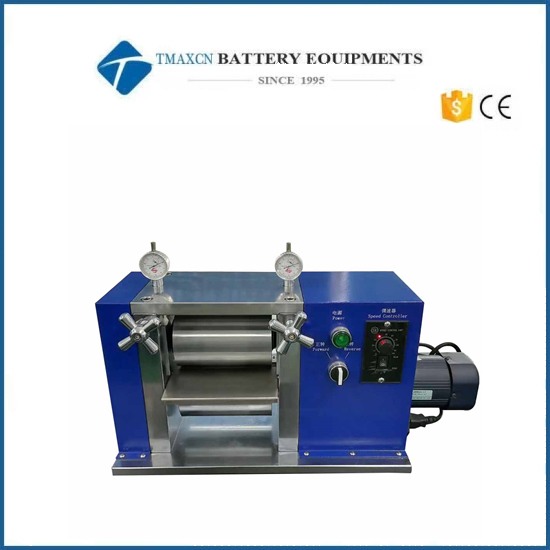

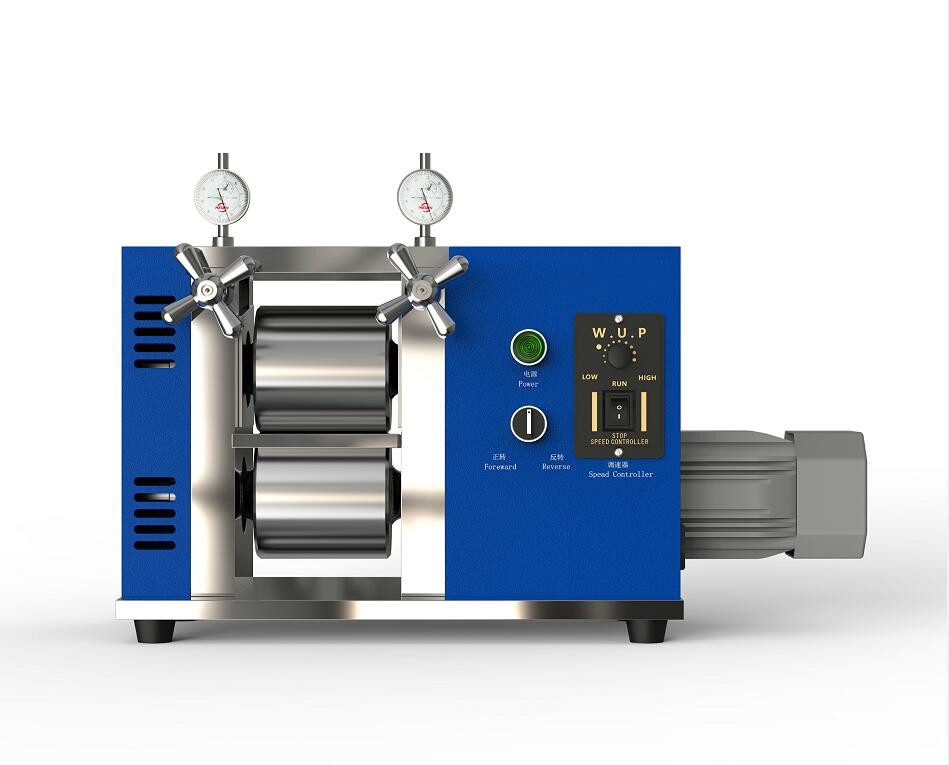

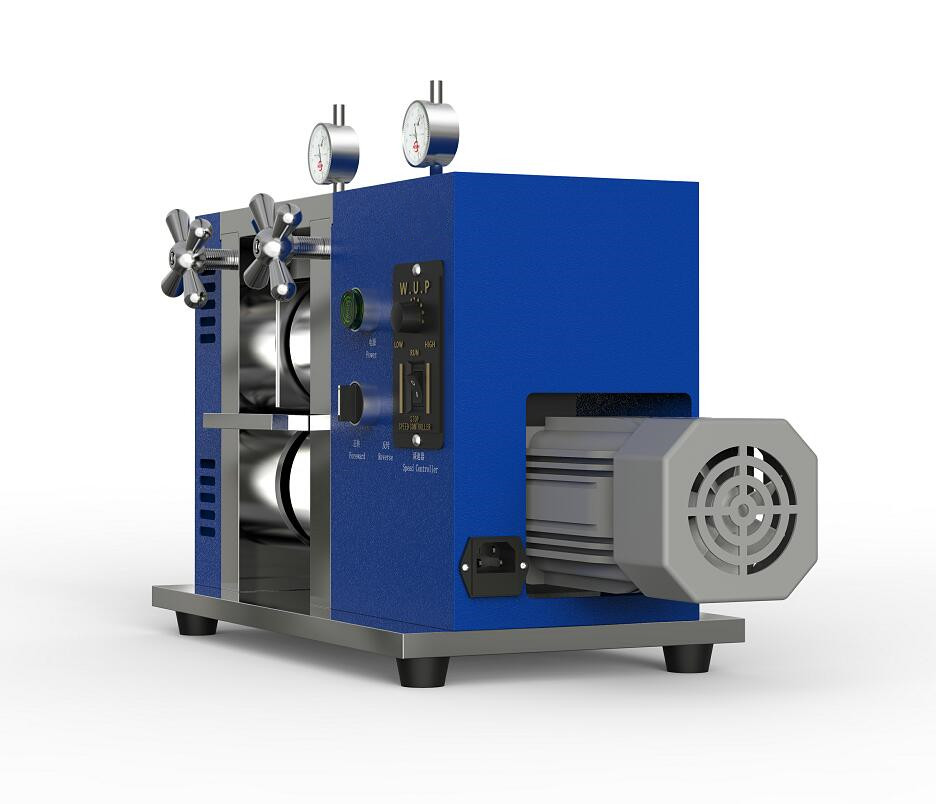

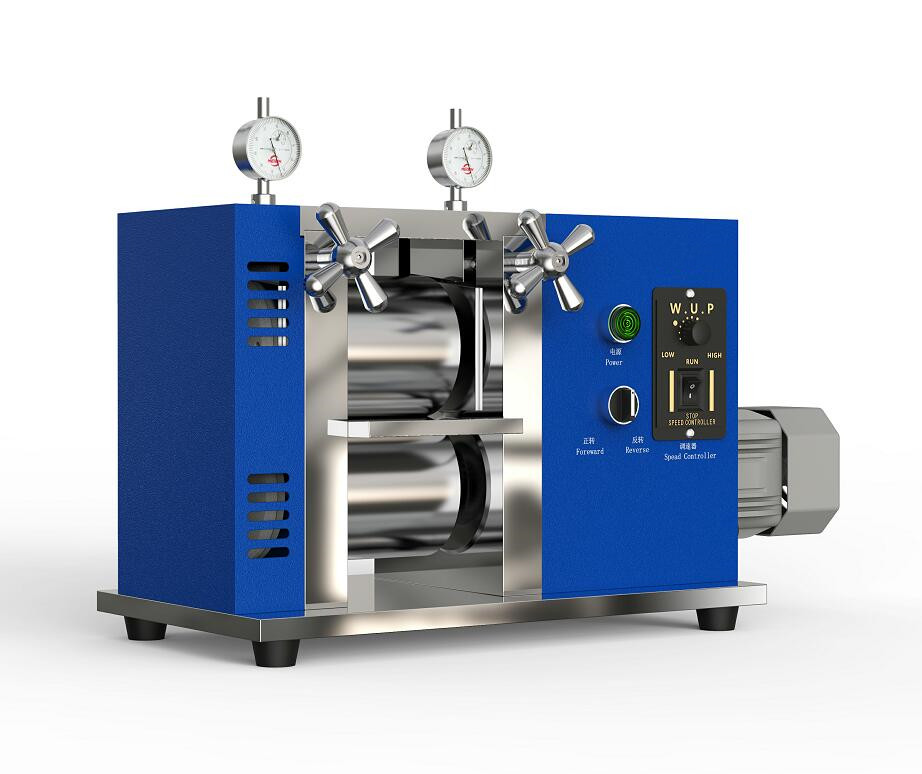

Electric Pressing/Roller/Calender Machine For Rolling Electrode

Model

DG100

DG150

DG200

DG250

DG300

DG330

GY200w

Roller Dimensions

96mm(Dia.) x 100mm(W)

96mm(Dia.) x 150mm(W)

96mm(Dia.) x 200mm(W)

96mm(Dia.) x 250mm(W)

96mm(Dia.) x 300mm(W)

96mm(Dia.) x 330mm(W)

200mm(Dia.) x 200mm(W)

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

Roller

1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating

3. Rolling Speed: 0-40mm/s adjustable

Roller Surface Hardness

62 HRC
Never roll materials with hardness > 50HRC

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Warnings

1. Never roll materials with hardness > 50HRC
2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time.
4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
5. This rolling machine can be used under Ar gas.
