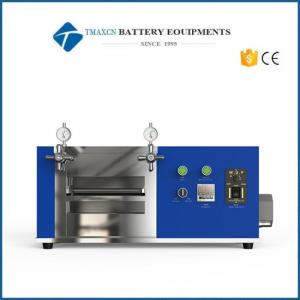

Electric Heat Rolling Press Machine Calender Machine with Variable Speed
Model Number:
TMAX-Jk100Type:
Rolling Press MachineDimension(L*W*H):
400*250*360mm(L*W*H)Net Weight:
90kgWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Electric Heat Rolling Press Machine Calender Machine with Variable Speed
TMAX-Jk100 Hot rolling press machine is mainly applied to laboratory battery materials, a small amount of gold and silver and other precious metals, copper and other nonferrous materials at a certain temperature, electric hot rolling, rolling thickness adjustable, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.
SPECIFICATIONS:
|
ITEM |
Unit |
Data |
|
Size(L*W*H) |
mm |
400*250*360mm(L*W*H) |
|
Weight |
kg |
90kg |
|
Roll length |
mm |
100-400 |
|
Roll width |
mm |
100-300 |
|
Calendering thickness |
mm |
0~3 |
|
Dial Gauge Accuracy |
mm |
0.01 |
|
Rolling Speed |
mm/sec |
0~10 |
|
Roller Surface Max. Tem |
°C |
130 |
|
Surface hardness of rollers |
|
HRC60-62 |
|
Total Power |
|
AC110-220V,720W |
