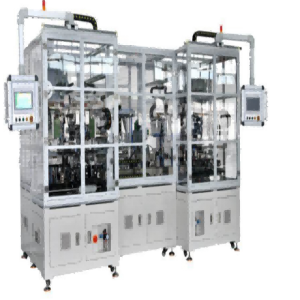

Dual-Station High-Speed Battery Stacking Machine For Lithium Battery Pouch Cell

Dual-Station High-Speed Battery Stacking Machine For Lithium Battery Pouch Cell

Feature

1.High speed: Linear motor feeding, linear motor driving stacking table movement, achieving high-speed stacking, with a speed of up to 0.3s/pcs

2.The diaphragm is actively unwinded by the servo, and the tension is controlled by the servo torque. The diaphragm buffer and stacking platform move synchronously to supply the diaphragm, preventing it from stretching and deformation.

3.Measures for multi piece leakage: material box swing, segmented brush, robotic arm servo shaking to separate polar pieces, and ultrasonic sensor to detect multi piece leakage.

4.Corner detection of electrode lug: four Corner detection of electrode lug and electrode lug are detected, and defective electrode lug is automatically discharged.

5.The FFU fan at the top of the equipment supplies air, and the industrial dust removal system vacuums multiple workstations such as the material box and positioning, allowing the internal air of the machine to circulate and suck away the floating powder inside.

Specification

Locate mode	Mechanical positioning or CCD positioning
Stacking efficiency	Single station 0.6 (complete machine 0.3) s/pcs
Auxiliary time	<10s
Alignment accuracy between electrode and diaphragm	Center deviation ± 0.3mm
Diaphragm end face alignment accuracy	±0.3mm
Adjacent pole alignment accuracy	±0.2mm
Overall alignment accuracy of polar plates	±0.3mm
Number of laminations	Can be set within the thickness adaptation range
Outer diaphragm	Tail roll/no tail roll
Pass rate	≥99.5%
Utilization rate	≥98%
Overall dimensions	W4000mm x L2000mmx H2500mm
Weight/bearing capacity	About 5000Kg ; >650Kg/M2
Power	AC220V single-phase; 10% voltage wave induced soil disturbance; Power: 15KW; Frequency: 50Hz
Compressed air	0.5~0.7Mpa (5~7kgf/cm2 ）, dosage 800L/min

Thickness	5~20mm
Width	80~200mm
Length	120~300mm
Pole length	10~30mm
Polar direction	On the same/opposite side

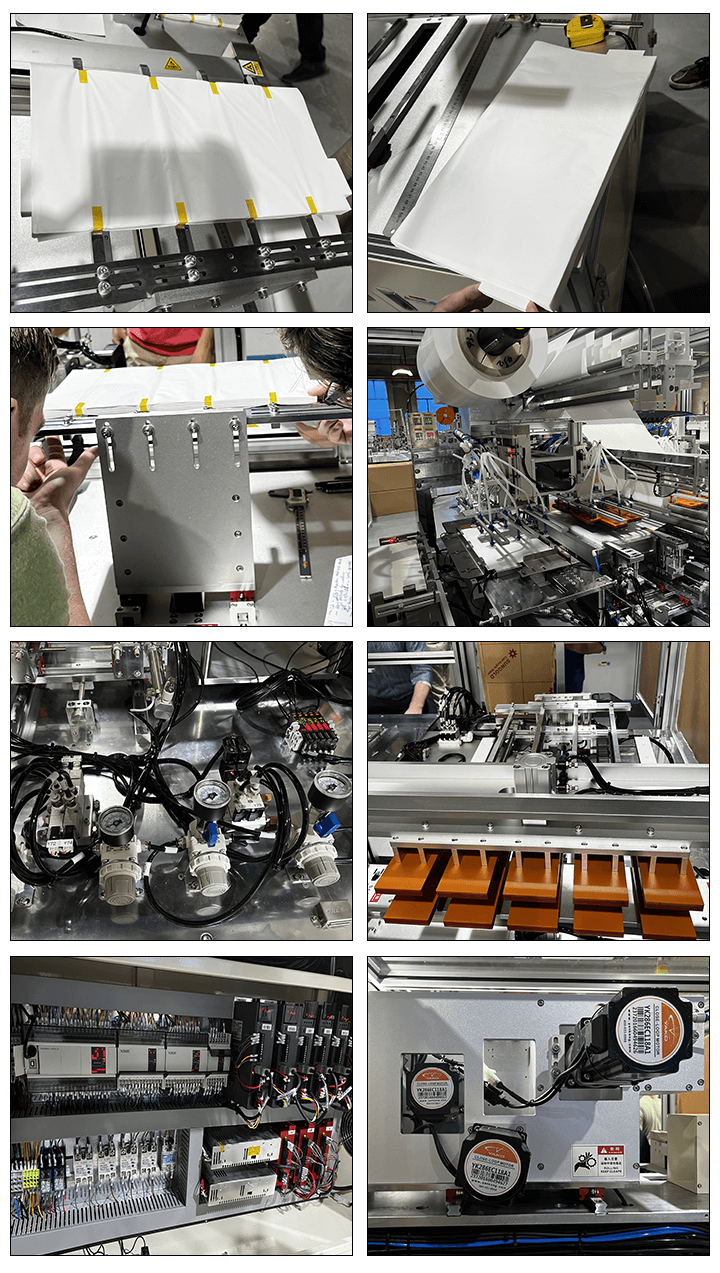

Production Assembly Plant
