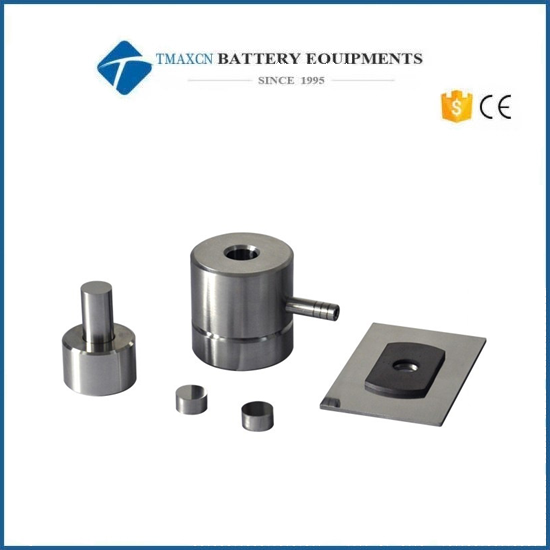

Dia 13mm Lab Infrared Special Mold Without Mold Withdrawal
Model Number:
TMAX-ISMCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

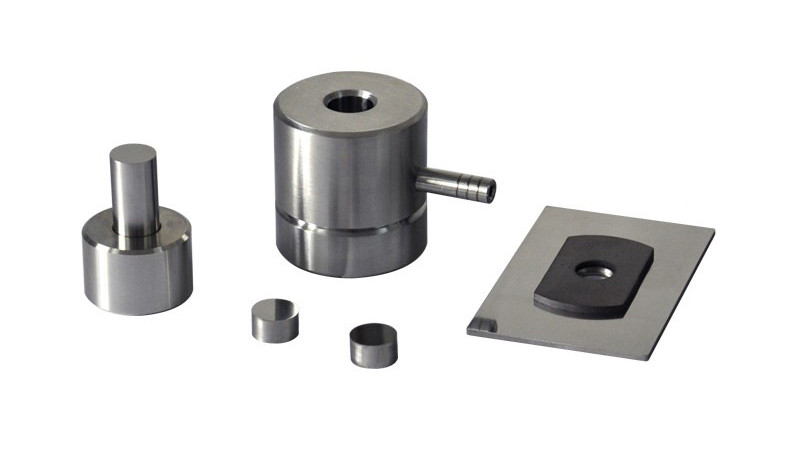

Dia 13mm Lab Infrared Special Mold Without Mold Withdrawal
Infrared film removal mold means that the sample needs to be removed from the mold after it is pressed into shape, placed on the magnetic sample holder for testing, and then placed in the sample compartment of the infrared spectrometer for testing. The size of the tablet: diameter Ф13mm, the thickness of the tablet: 0.5-1mm . Special mold size, specifications, shape, material, etc. can be customized according to customer needs.
Non-retractable infrared molds are habitually called infrared special molds, which means that the sample does not need to be demolded after being pressed. The sample has good molding effect and high transmittance. The mold sample holder is directly placed in the sample compartment of the infrared spectrometer for testing. Sheet size: diameter Ф13mm, sheet thickness: 0.5-1mm. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.
Specifications
|
Name |
Infrared special mold |
|
Actual drawing of molding sample |
|
|
Compressible sample shape |
circular slice |
|
Mold material |
Japan·High Speed Tool Steel: ASSAB+17 |
|
Hardness of die indenter |
HRC68-HRC70 |
|
Sample dimensions |
Ф13mm |
|
Mold cavity depth |
20mm |
|
Mold dimensions |
Ф43×78mm |
|
Mould weight |
0.76kg |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
