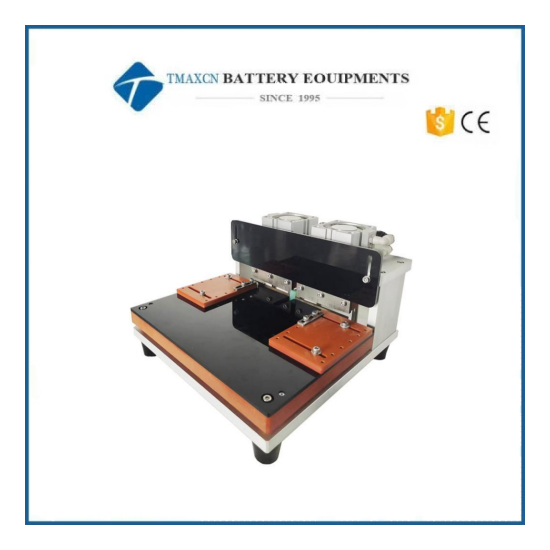

Desktop Compact Pouch Cell Tab Cutting Machine Without Short Circuit For Lithium Battery Assembly

Desktop Compact Pouch Cell Tab Cutting Machine Without Short Circuit For Lithium Battery Assembly

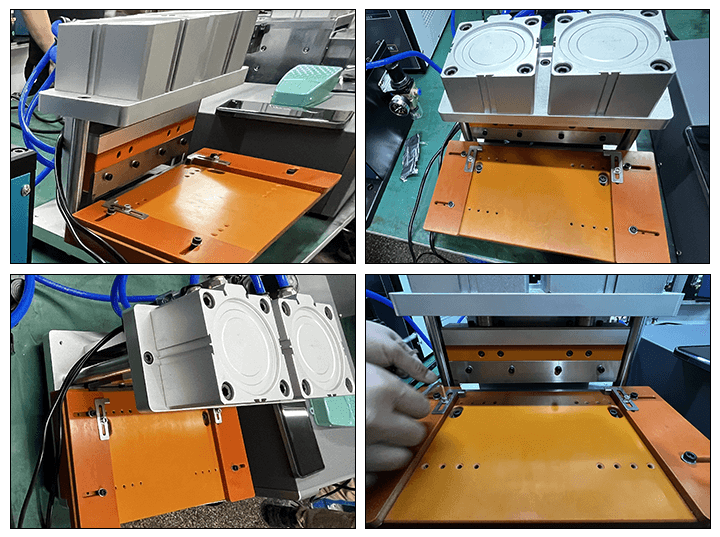

I. Product overview

This equipment is to achieve the function of cutting the tab of large polymer, small equipment, simple operation, and stable cutting. Both positive and negative tabs are cut without short circuit.

2, product characteristics

1, small and simple equipment, easy to operate, low failure rate.

2. The machine solves the problem of simultaneously cutting the positive and negative electrodes of the polymer built-in battery to avoid short circuit.

3, used for cutting the length of the positive and negative ear before the polymer built-in battery welding protection plate (including mobile phone battery, mobile power supply, power battery, etc.).

Technical parameters

Power supply	220V50Hz 30W
Air source	0.4-0.8MPa
Applicable battery type	Polymer battery
Max. tab width	194mm
Min. gap of tab	10mm
The tab retains the shortest length	5mm
Cell length	30-200mm
Cell width	30-300mm
Cell thickness	2-12mm
Weight	10kg
Dimension	300*300*210mm
Cutting tab’s thickness	Al, Ni: max. 0.6mm nickel plated copper: 0.4mm
