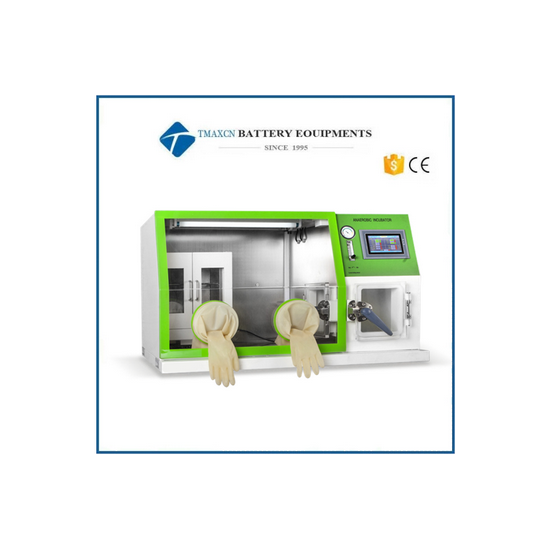

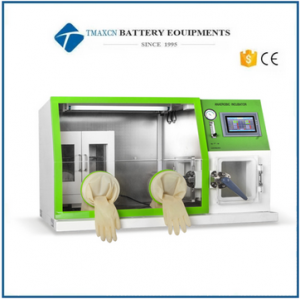

Desktop Anaerobic Incubator with Programmable Controller

Lab Desktop Anaerobic Incubator Anaerobic Culture Chamber

The anaerobic incubator is composed of constant temperature incubator, anaerobic operation room, sampling room, gas path and circuit control system, cabinet frame, etc. The machine is characterized by good anaerobic environment, good sealing performance, high temperature control accuracy, good stability, convenient use, good economy and reliability

Features

1.Use scientific and advanced means to achieve high-precision, constant performance and constant temperature anaerobic environment, which is convenient for operators to operate in anaerobic environment and cultivate anaerobic bacteria.

2.The anaerobic incubator is a new generation of large screen real color touch screen microcomputer control type newly developed by our company, which can accurately and intuitively control the incubator temperature and gas, safe and reliable. It has the characteristics of simple and intuitive, convenient operation.

3.The system adopts PLC as the core controller, supplemented by high-precision temperature sensor, oxygen sensor, temperature control module and analog quantity module, with high control accuracy, good stability and high safety; the human-computer interface is convenient for the operator to monitor the process data in real time.

4.With the imported oxygen sensor, you can observe the oxygen concentration status in the operation room at any time (the oxygen concentration can be selected to switch % or ppm function).

5.The operation room is equipped with deaeration catalyst, special inoculating rod sterilizer and wax melting disinfection device.

6.With USB interface, memory can store data for 6 months.

7.UV sterilization lamp is installed in the box, which can effectively avoid bacterial pollution.

8.The gas circuit device adopts the light touch switch to control the solenoid valve, which can adjust the flow accurately and input all kinds of required gases.

9.The incubator is designed for double door widening, which changes the phenomenon of touching the front window of the operating room when a single door is opened, and more Petri dishes can be placed in the widening.

10.The culture room and operation room are made of stainless steel plate, smooth and elegant, corrosion-resistant and durable.

11.The front window of the operation room is made of thickened transparent impact resistant special glass plate, and the special gloves are reliable, comfortable, flexible and easy to use.

12.Installed with leakage protector

13.In addition to constant temperature heating culture in incubator, constant temperature heating culture can also be carried out in operation room.

SPECIFICATIONS
