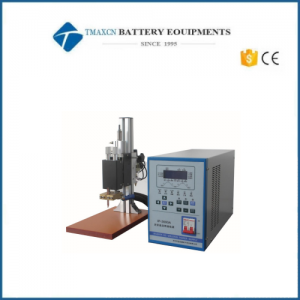

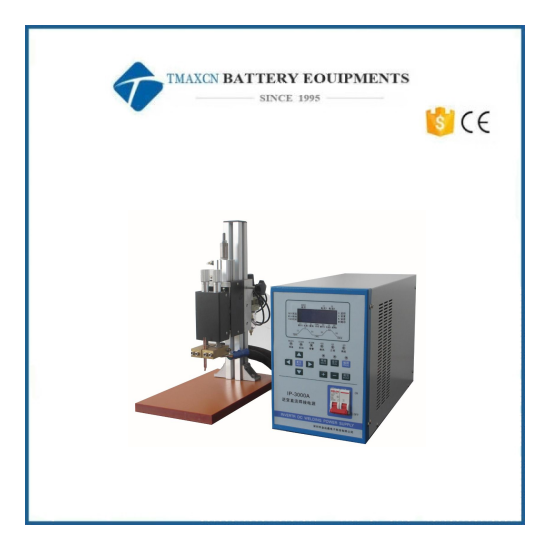

Desktop 3000A Inverter DC Welder Metal Strip Spot Welding Machine

Desktop 3000A Inverter DC Welder Metal Strip Spot Welding Machine

Function

• High frequency constant current inverter control of 4KHz is conducive to high speed and high quality welding control.
• The use of 2-stage current welding function is conducive to overcoming the plating problems of welding parts and adapting to various process requirements.
• The function of slow current rise and slow current fall is beneficial to restrain the spatter phenomenon in welding
• The switching of 8 kinds of welding specifications is conducive to the rapid change of welding parameters according to different welding requirements.
• The blue LCD20X4 line LCD displays a variety of welding information and welding parameters to facilitate the confirmation of welding results.
• It has two stages of current monitoring and comparison function, welding abnormal alarm, compare the welding results with the parameters of the equipment, and determine whether the set value is exceeded, and determine the output of normal (GO) or abnormal (GN) display and signal.
• Imported IBGT module full bridge control welding, welding quality and speed is not ordinary energy storage welding energy ratio.
• Data is stored in EEPROM, no battery life issues, and every boot goes back to the last used welding procedure.
• Current abnormal sound and light alarm, effectively prevent the appearance of false welding phenomenon
• With fault self-diagnosis function, display the corresponding fault point, convenient maintenance

Technical parameters
