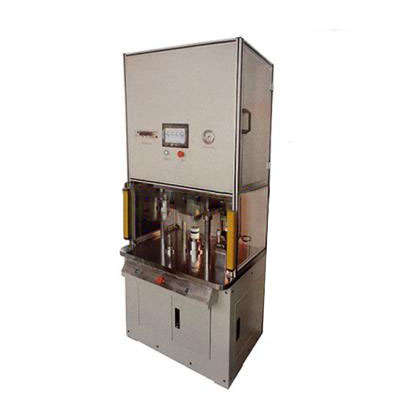

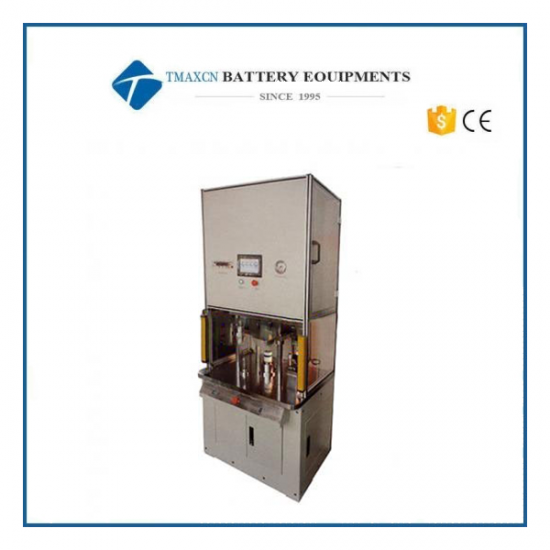

Cylindrical Supercapacitor Cell Shaping Machine
Model Number:
TMAX-YZ60-2GDCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Cylindrical Supercapacitor Cell Shaping Machine
SPECIFICATIONS
Suitable for cell shaping of cylindrical supercapacitor.
Functional characteristics
1.Adopt hydraulic system as the shaping power, with stable and adjustable force and speed, and high working efficiency.
2.The shaping height may be set and adjustable by servo control system.
3.Equipped with the imported two - dimension bar code scanner. Data can be stored and derived, for the convenience of quality control and traceability on product.
4.Equipped with security door and safety protection light grid, with safe and reliable device operation.
5.Adopt the imported PLC. Touch screen displays operation.
Technical parameters
|
Power source |
AC380V/50Hz |
|
Air source |
0.4~0.7M Pa |
|
Cell specification |
φ57x(80~130)mm |
|
Pressure holding time |
1s~10s(adjustable) |
|
Nominal pressure |
30kN |
|
Height positioning accuracy |
±0.03 m m |
|
Shaping error(H) |
±0.05 m m |
|
Overall dimensions (LxWxH) |
1100x1200x2100mm |
