Cylindrical Battery Semi-Automatic Adjustable Electrode Slitter Machine For Coated Electrodes Plates Slitting
Model Number:
TMAX-SL650BType:
Electrode Slitting MachineDimension(L*W*H):
20-500mmCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

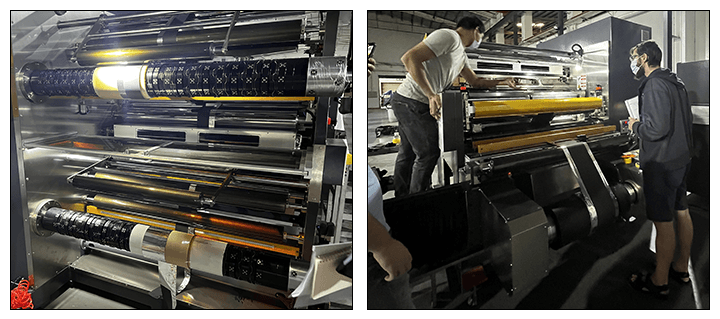

Cylindrical Battery Semi-Automatic Adjustable Electrode Slitter Machine For Coated Electrodes Plates Slitting
SPECIFICATION
The machine with photoelectric tracking correction system, magnetic powder clutch for winding and unwinding tension control, host frequency, cots on activities is controlled by cylinder can also fit, slitting, can also separate joint or separate cutting, accurate slitting, fast slitting speed and operation and maintenance is convenient etc.
|
Model |
TMAX-SL650B |
|
Size(mm) |
2400x1700x1300 |
|
Weight(kg) |
1000 |
|
Power supply |
AC220V |
|
Power (kw) |
2.2 |
|
Slitting speed(m/min) |
80 |
|
Max slitting size(mm) |
650 |
|
Min slitting size(mm) |
8 |
|
Feeding roll diameter(mm) |
600 |
|
Winding roll diameter(mm) |
450 |
|
Slitting accuracy(mm) |
±0.1mm |
