Cylindrical Battery Double Point Pneumatic Spot Welding Machine and Battery Tab Spot Welder
Model Number:
TMAX-ARP30Input Power:
15KVADimension(L*W*H):
470*220*320mmNet Weight:
30kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

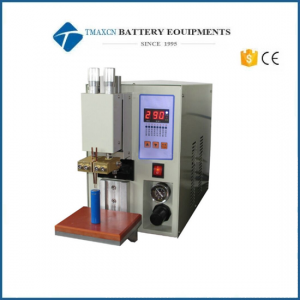

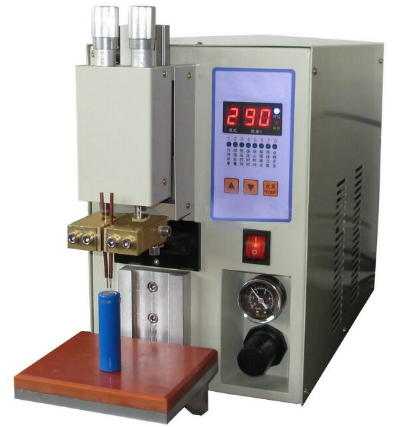

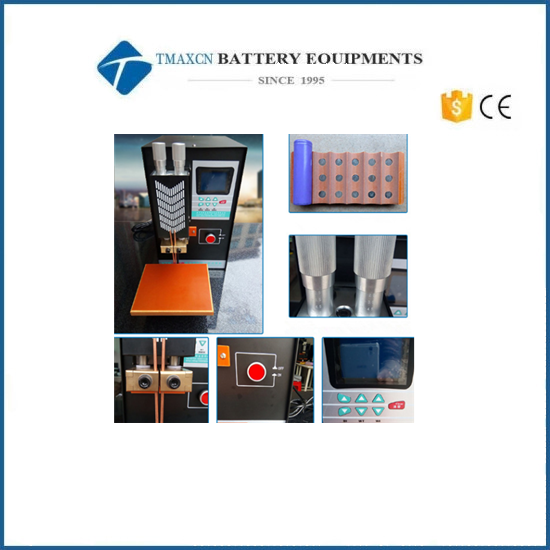

Double Point Pneumatic Spot Welding Machine and Battery Tab Spot Welder
This pneumatic spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.02-0.2mm with good welding effect.
The Pneumatic model is with smaller volume and weight, easy for international shipping.
1. Microcomputer control, CNC current adjust
2. High precision welding power
3. Digital tube display, keyboard control, welding parameters flash storage.
4. Double pulse welding, make welding more firmly.
5. Small welding sparks, solder joint uniform appearance, the surface is clean
6. Welding times can be set
7. Can set preloading time, the holding time, time to rest, the welding speed can be adjusted.
8. Large power, stable and reliable.

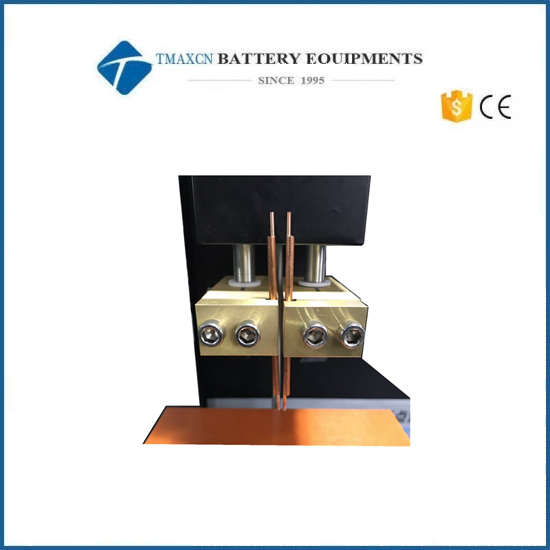

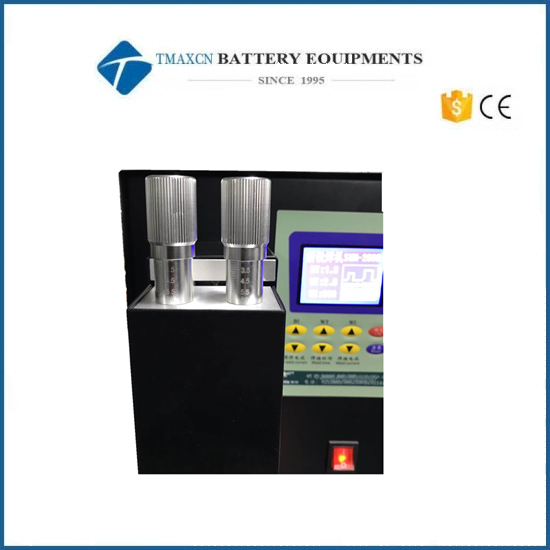

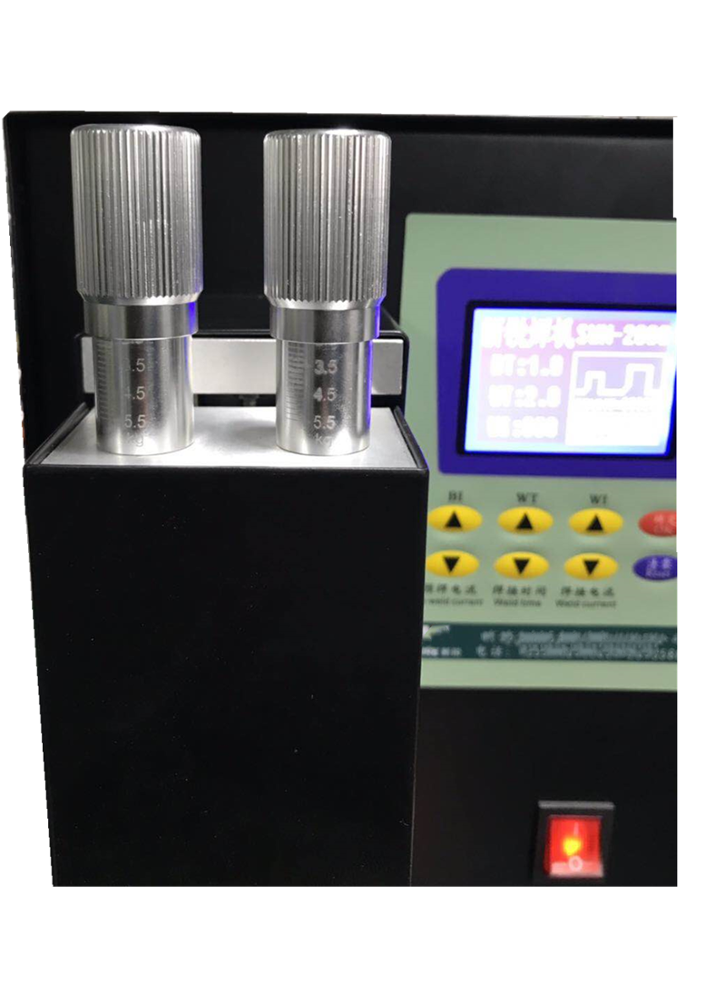

9. Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.
Specification
|
Model |
TMAX-ARP30 |
|
Control mode |
Pneumatic |
|
Welding current |
3000A |
|
Welding power |
0-99% adjustable |
|
Welding method |
Double pulse |
|
Maximum output power |
15KVA |
|
Voltage supply |
AC 220V±10% 50Hz±2Hz |
|
Welding way |
Ordinary welding and continuous automatic welding |
|
Time setting |
0-2.55s |
|
Automatic counting function |
yes |
|
Weight |
30kg |
|
Dimensions |
470*220*320mm |
