Cylindrical Battery Automatic Peeling Machine PVC Wrap Laser Cutter

Model Number:
TMAX-YBM-C
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

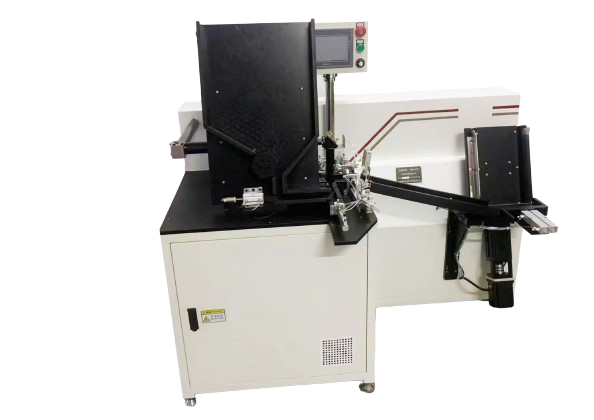

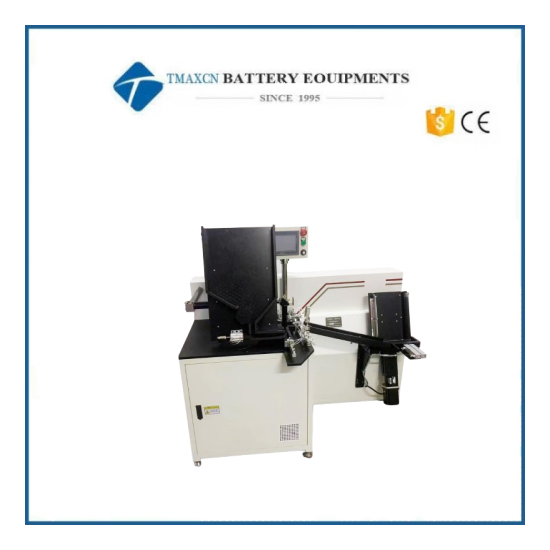

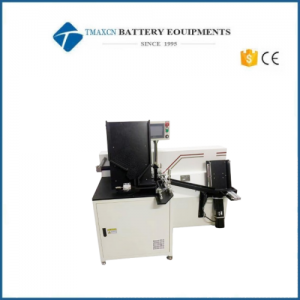

Cylindrical Battery Automatic Peeling Machine PVC Wrap Laser Cutter

1. The Product Specifications and Range the Equipment Can Handle:

Cylindrical 18650 series battery products;(other battery model is available upon request)

2. Working Principles and Brief Descriptions of Equipment

This machine is fully automatic production equipment used for peeling off the PVC film of batteries after they have been wrapped. The main principle of this equipment involves feeding from a hopper, heating the battery with a hot air gun, rotating the battery for laser film cutting, mechanical hand demolding, and collecting materials in an A4 box uniformly and smoothly.

Machine Dimensions: 1800mm (length) * 1000mm (width) * 1600mm (height)

3. Equipment Operating Process

Feeding from the hopper into the box → Heating channel with hot air blower → Rotating battery → Laser cutting film → Demolding at both ends → Conveyor belt buffering → Automatic boxing into A4 material box

4. Technical Parameters of the Equipment

Equipment acceptance rate	99.5% (only refers to defects caused by the equipment itself);
Equipment utilization rate	≥95% (only refers to failures caused by the equipment itself);
Production capacity of the equipment	50-55 PPM;
Electrical requirements of the equipment	Voltage 220V, 50Hz; Voltage fluctuation less than ±10%; Power of the equipment : 1.5KW
Air supply requirements	≥0.6Mpa (provided by the customer); Air consumption: 20L/min;

5. Main Components of the Equipment

No.	Name of Component	Description of Function
1	Frame	The lower frame is constructed from square tube welding + sheet metal painting.
2	Hopper Mechanism	Composed of processing and standard motors.
3	Battery Processing Channel	Hot air is delivered by the hot air blower, and a cylinder pushes individual batteries forward.
4	Laser Film Cutting Mechanism	Rotates the battery for laser film cutting.
5	Film Removing Mechanism	Film is removed by fingers clamped by a finger cylinder and other processing parts.
6	A4 Material Box Packaging	The entire box is automatically collected, composed of lead screws, stepper motors, cylinders, and other processing parts.
7	Electrical Control System	Composed of PLC, controller, touch screen, switch power supply, relays, sensor modules, etc., used to achieve various actions of the equipment, signal transmission, and data setting functions.

6. Requirements for the Equipment Use Environment

Equipment Weight: Single unit approximately 200-300Kg.

Ambient Temperature: Determined by the client's factory environment.

Control Power Supply: 220V, 50HZ, with a voltage fluctuation range of +10% to -10%.

Compressed Air: After drying, filtering, cooling, and stabilization: air pressure greater than 5.0Kgf/cm^2.
