Cryogenic Control Planetary Ball Mill Grinder
Model Number:
TMAX-Mill-16Type:
Planetary Ball MillDimension(L*W*H):
950*600*710 mmNet Weight:
130KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

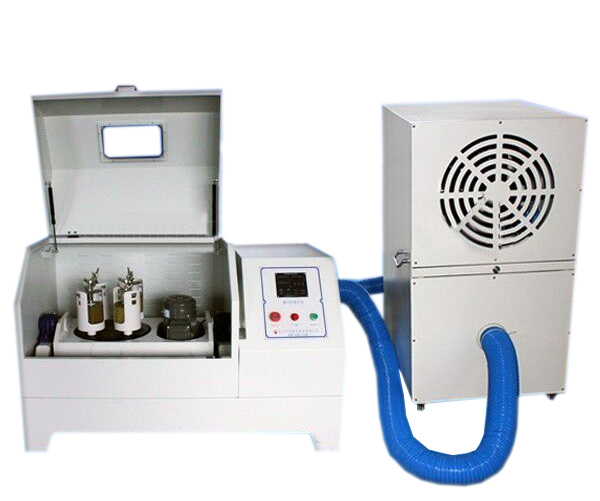

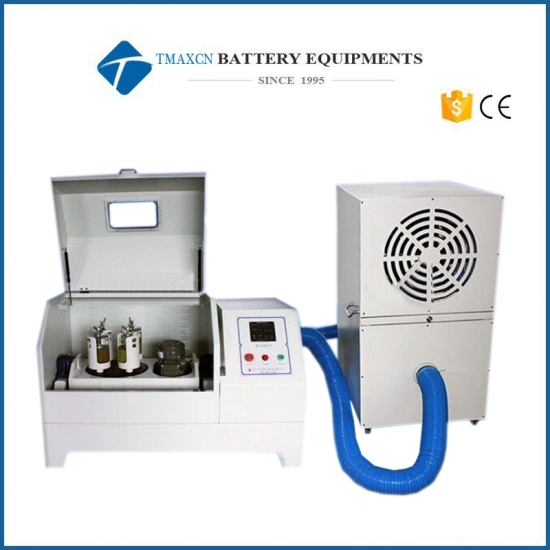

Cryogenic Control Planetary Ball Mill Grinder
The Cryogenic Control Planetary Ball Mill is composed of planetary ball mill and cold-air device. Cycling of cold air quickly takes away the heat generated by grinding by means of air conditioning refrigeration principle, and temperature inside the grinding space can be controlled at 2-10 ℃ according to temperature difference of working environment. Cold-air planetary ball mill is mainly applied to ultrafine grinding under condition of low-temperature requested by materials.Compared with the artificial injection of liquid nitrogen cooling, cold-air planetary ball mill is much easier and more convenient to be operated, it is also cost-saved, and low-energy consumed. Such a cold-air device can be also applied to assembly other models like vertical ball mill, horizontal ball mill, 360 degree ball mill and dual ball mill.
Parameter of cooling lab ball mills:
|
Type No. |
Specificatio(L) |
Volume of each matched pot |
Remarks |
|
Mill-0.4 |
0.4 |
50-100ml |
Match with 50ml vacuum pot |
|
Mill--1 |
1 |
50-250ml |
Match with 50-100ml vacuum pot |
|
Mill-2 |
2 |
50-500ml |
Match with 50-250ml vacuum pot |
|
Mill-4 |
4 |
250-1000ml |
Match with 50-1000ml vacuum pot |
|
Mill-8 |
8 |
1-2L |
Match with 50-1500ml vacuum pot |
|
Mill-12 |
12 |
1-3L |
Match wiht 1-2Lvacuum pot |
|
Mill-16 |
16 |
2-4L |
Match with 1-3Lvacuum pot |
|
Mill-20 |
20 |
2-5L |
Match with 2-4Lvacuum pot |
|
Mill-40 |
40 |
5-10L |
Match with 5Lvacuum pot |
|
Mill-60 |
60 |
10-15L |
Match with 10Lvacuum pot |
|
Mill-100 |
100 |
20-25L |
Match with 20Lvacuum pot |
Material Data for Grinding Jars/Balls
