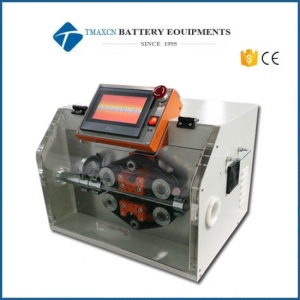

Corrugated Pipe Cutter Cutting Machine For Round Plastic Hose/Ripple
Model Number:
TMAX-HZX-B110Type:
AutomaticInput Power:
1.1kwDimension(L*W*H):
L570*W470*H510mmNet Weight:
46KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

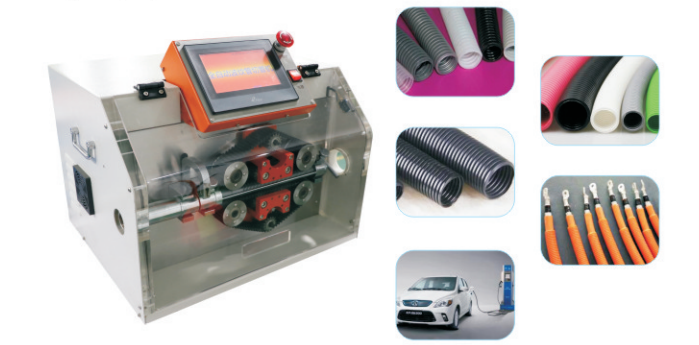

Corrugated Pipe Cutter Cutting Machine For Round Plastic Hose/Ripple
Features
1. This machine is specially designed for the corrugated pipe processing of automobile wire harness industry. High precision PLC control, easy to operate and understand.
2. The machine is used for cutting round plastic hose and ripple, with high processing efficiency, stability and reliability.

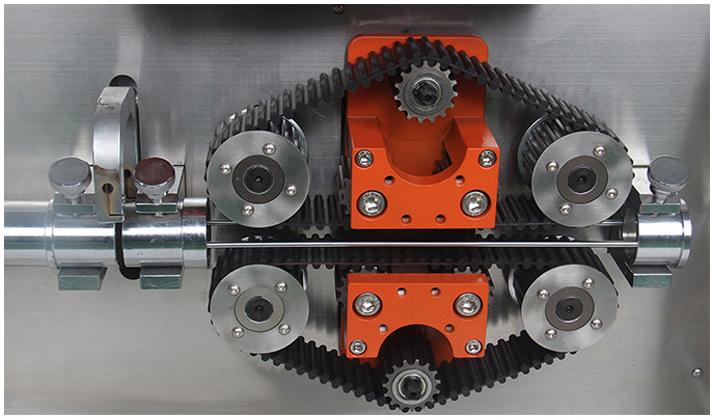

3. This machine adopts stepper motor feeding, which has the characteristics of stable feeding and accurate length.
4. This machine adopts integrated circuit, accurate and stable control, simple maintenance, full touch screen operation, and easy data.

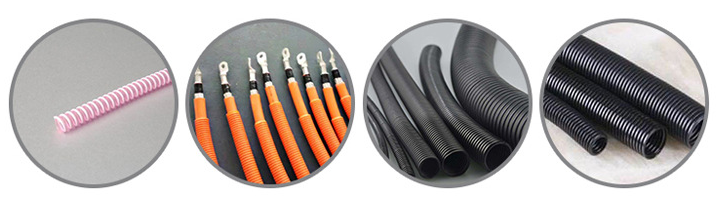

Material
Applicable to automotive wiring harness , new energy wiring harness , aerospace , motorvehicles , urban rail transit , high voltage cabinet , etc.
The machine is designed for long cutting and high demand bellows products with belttraction , using displacement sensors , positive response to pre-placed pipe , activetransport , to achieve high speed and accuracy , touch screen , PVC control , digitaloperation , integrated circuits , control stability , easy maintenance , improve productionefficiency every day.
Specification
|
Model |
TMAX-HZX-B110 |
|
Power Supply |
AC220V 50/60HZ |
|
Power |
1.1KW |
|
Shape size |
570'470,510MM |
|
Weight |
46KG |
|
Cutting precision |
±0.1MM |
|
Shear length |
0.1-9999MM |
|
Trip |
30MM |
|
Machining diameter |
®5-®30MM （ O40MM Customizable) |
|
Shear velocity |
60510times/min L・100MM |
