Coin Cell Research Three Electrode Split Test Cell
Model Number:
EQ-3ESTCDimension(L*W*H):
5 - 24 mm DiaCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

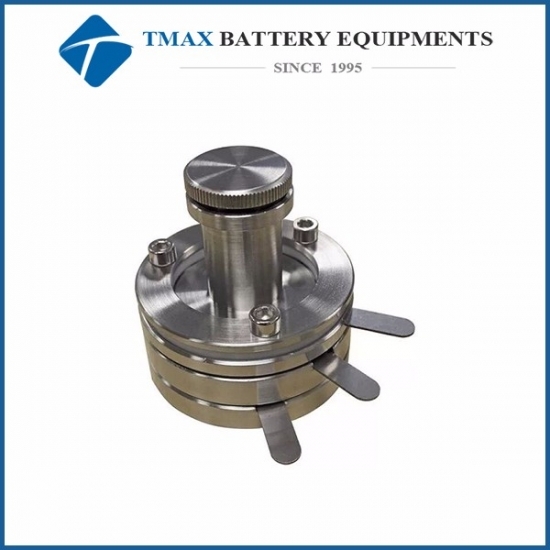

Coin Cell Research Three Electrode Split Test Cell
SPECIFICATION
1. It is designed test various electrodes easily and quickly by providing the user a structure to simulate assembled
coin cells without the need to crimp actual coin cell cases.

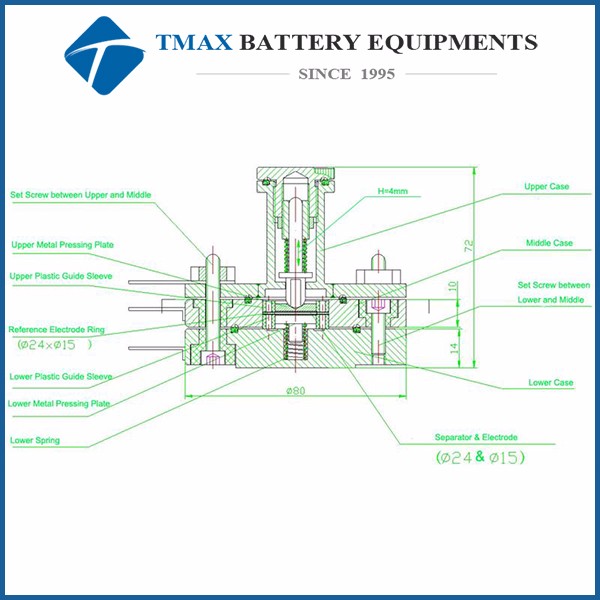

2.Two sides of test cell connect to both electrode (the anode and cathode), with the middle being connected to the
reference electrode which can used for monitoring voltage variations of the two electrodes.
3.This test cell can accept 15 mm diameter electrodes and 24 mm separators.
|
Model |
Three Electrode Split Test Cell EQ-3ESTC |
|
Features |

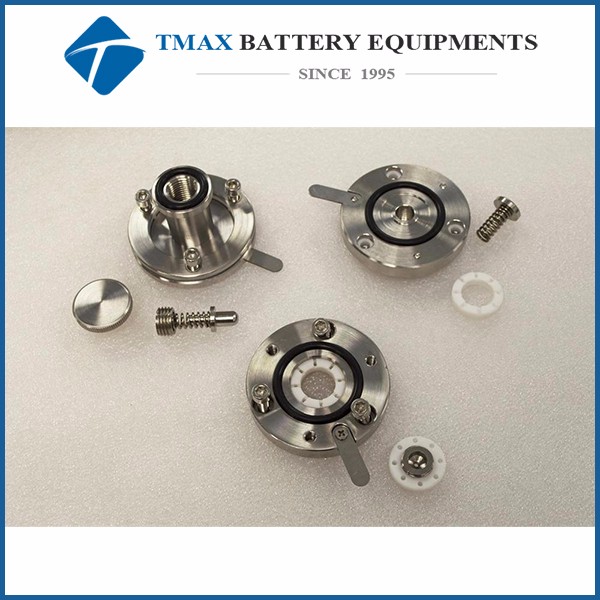

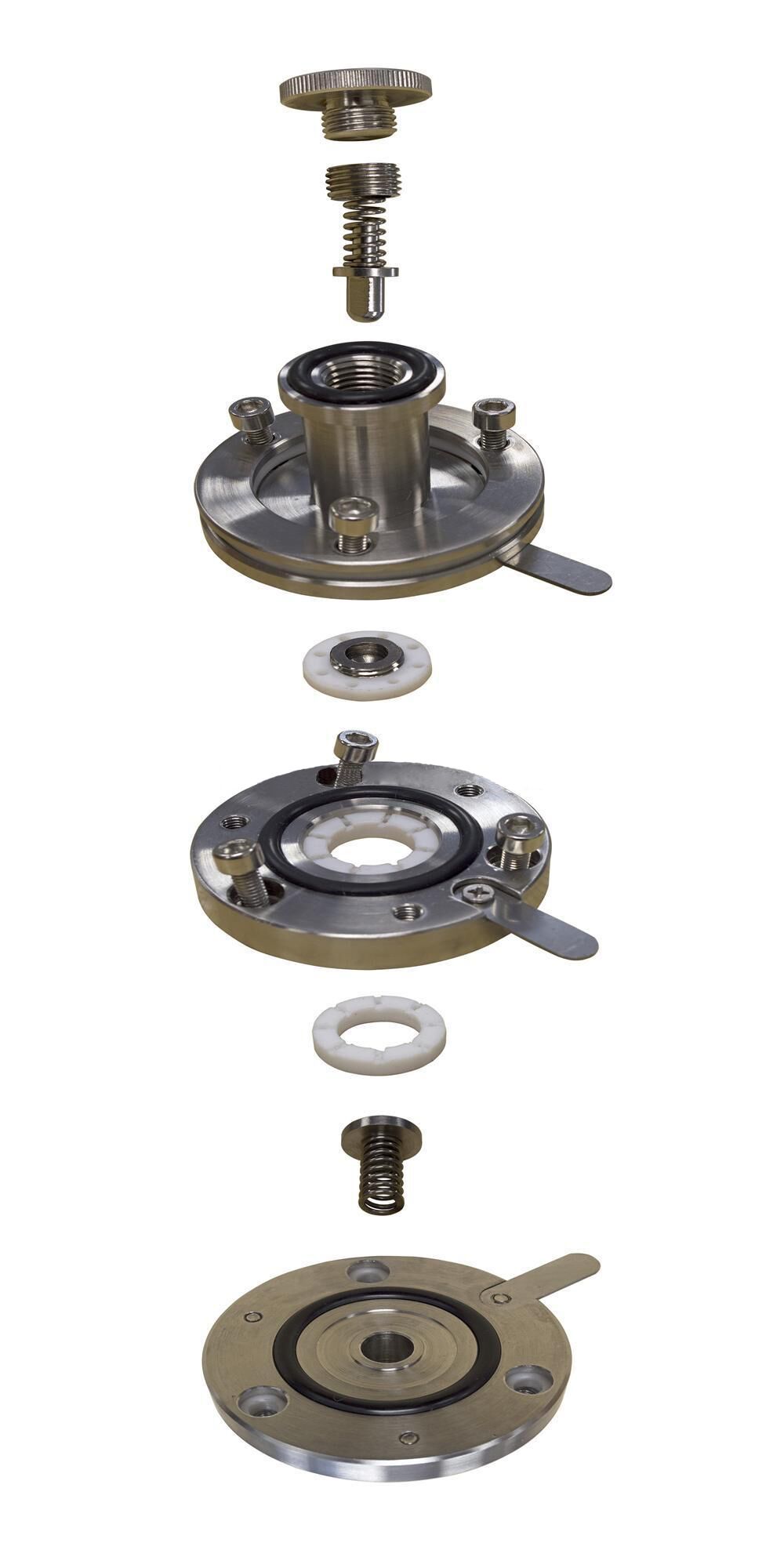

Silicon O-ring in between the three plates to ensure a good sealing up to a temperature of 300 °C Adjustable spring tension on top to accept various electrode thicknesses Easy to separate after testing Small enough to be put into and taken out from a glove box |
|
Spec |
Electrode diameter :Φ24mm Dimension:Φ80mm*80mm |
|
Optional Accessories |
Various Sizes Of Discrete Battery Research Suite Can Be Customized |
