home >Battery Laboratory Equipment >Coin Cell Electrode Disc Punching >Coin Cell Electrode Disc Punching Cutter with Cutting Die Standard 16, 19, 20 Dia. & 3 - 24mm Optional
PRODUCTS LIST
products
Coin Cell Disc Cutter
  • Coin Cell Electrode Disc Punching Cutter with Cutting Die Standard 16, 19, 20 Dia. & 3 - 24mm Optional
  • Coin Cell Electrode Disc Punching Cutter with Cutting Die Standard 16, 19, 20 Dia. & 3 - 24mm Optional
  • Coin Cell Electrode Disc Punching Cutter with Cutting Die Standard 16, 19, 20 Dia. & 3 - 24mm Optional

    • Coin Cell Electrode Disc Punching Cutter with Cutting Die Standard 16, 19, 20 Dia. & 3 - 24mm Optional

    • Model Number:

      TMAX-CP60

    • Dimension(L*W*H):

      16, 19, and 20mm precision dies are included in st

    • Net Weight:

      About 10kg

    • Compliance:

      CE certificate

    • Warranty:

      Two Year Limited Warranty With Lifetime Support

    • Payment:

      T/T, Credit Card, Paypal, LC, Western Union

    • Delivery Time:

      3 Days
    contact now
    Email:David@battery-equipments.com
    Wechat:13506084915
    DESCRIPTION


    Coin Cell Electrode Disc Punching Cutter with Cutting Die Standard 16, 19, 20 Dia. & 3 - 24mm Optional

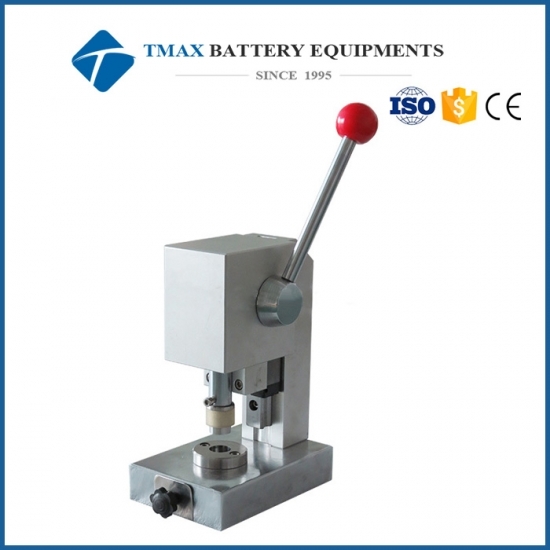

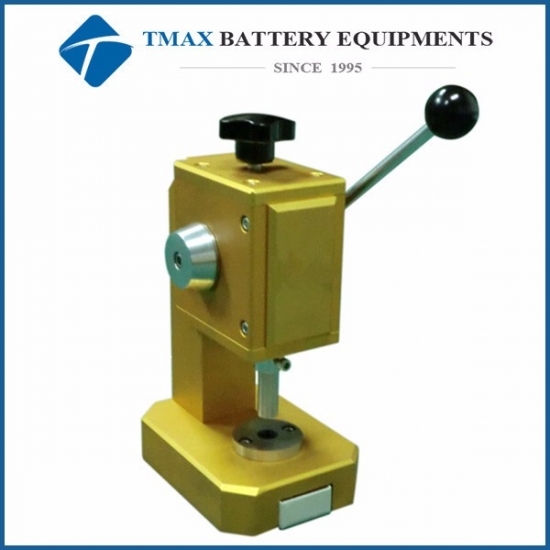

    TMAX-T-10 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil (< 0.5 mm) or separator film (<30um).  The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches as well as TEM sample preparation.


    Structure
    Major structural material: Cr Plated Steel
    Cutting Die
    • 16, 19, and 20mm precision dies are included in standard package
    • Optional 3 - 24mm customized dies are available.
    Product Dimensions
    • 209mm(L) x 120mm(W) x 394mm(H)
    • Compact size which can be put into glovebox throug air lock chamber
    Warranty
    • One year limited manufacture warranty with lifetime support
    • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
    Net Weight
    10 kg (22 lbs)


                        coin cell disc cutterDie Punching Cutter




     battery equipment

    Related Tags :

    Coin Cell Disc Cutter Electrode Cutter coin cell punching
