Coin Cell Case With One Side Kapton Window
Model Number:
TMAX-CCCType:
Coin Cell CaseDimension(L*W*H):
CR 2016 2025 2032 2450 2045Compliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION

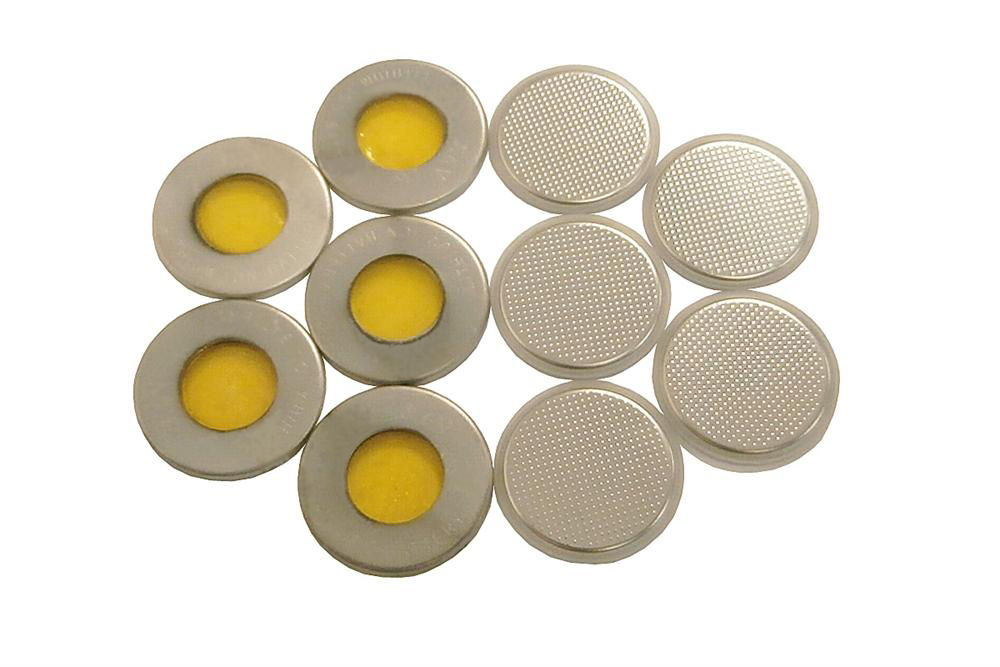

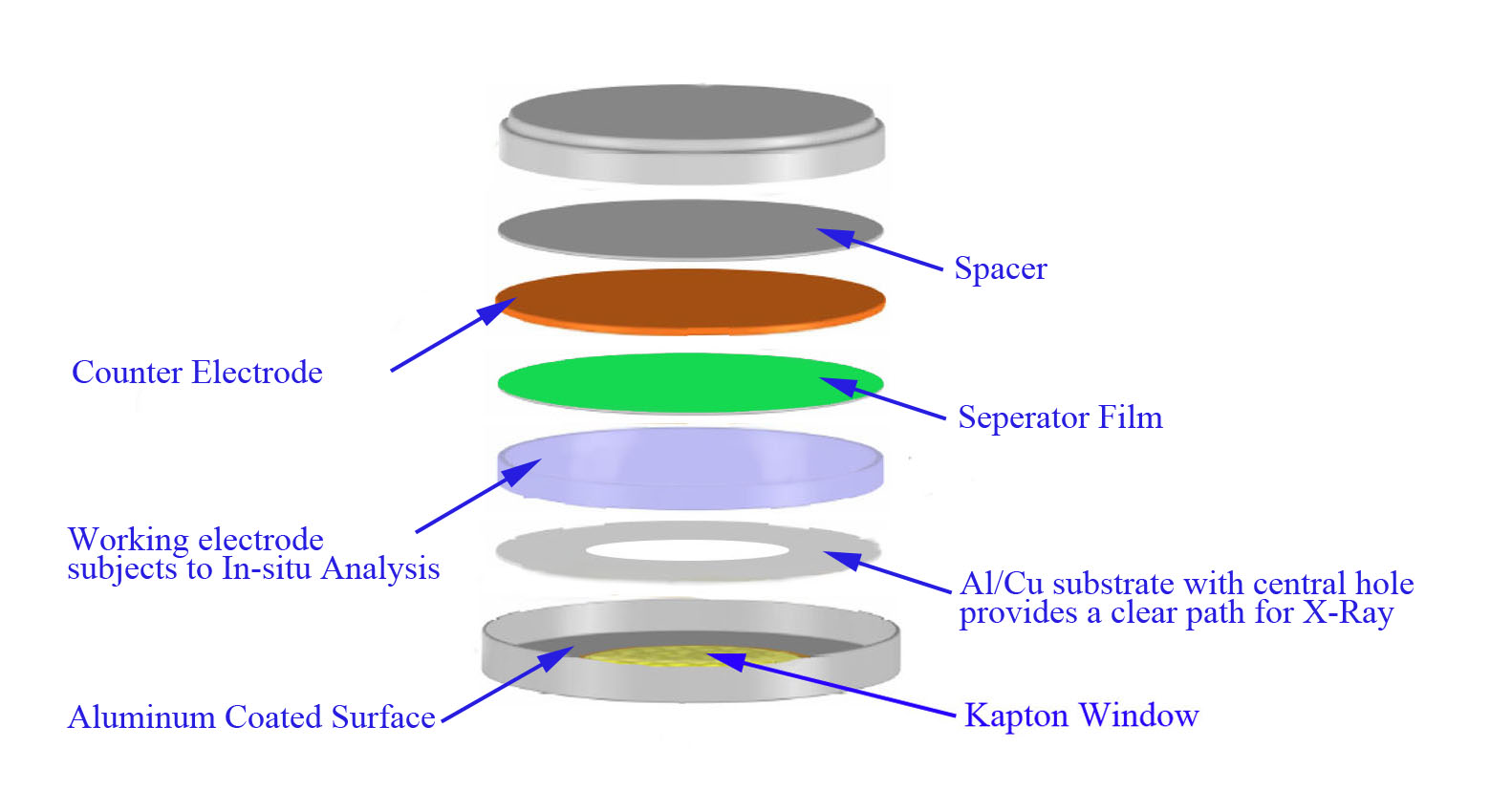

Coin Cell Case With One Side Kapton Window
|
Dimensions (Dia x Height) |
20mm x 1.6mm Or customized |
|
Kapton window thickness |
0.18mm |
|
Coating |

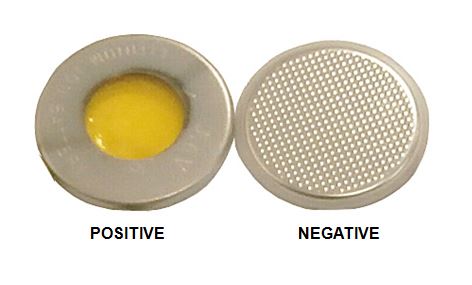

The positive side of casing is coated with aluminum |
|
Al coating thickness |
< 0.01mm |
|
Weight |
0.25 Oz (7 grams) |
|
Application note |
· In order to get better in situ XRD curve for battery, please use carbon foil as current collector instead of Al or Cu foil, which will absorb X-ray. |
