Climatic and Growth Chamber with Cold Light Source&Humidity Controller

  • Model Number:

    TMAX-LAC-N
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
Email:David@battery-equipments.com
Wechat:13506084915
DESCRIPTION

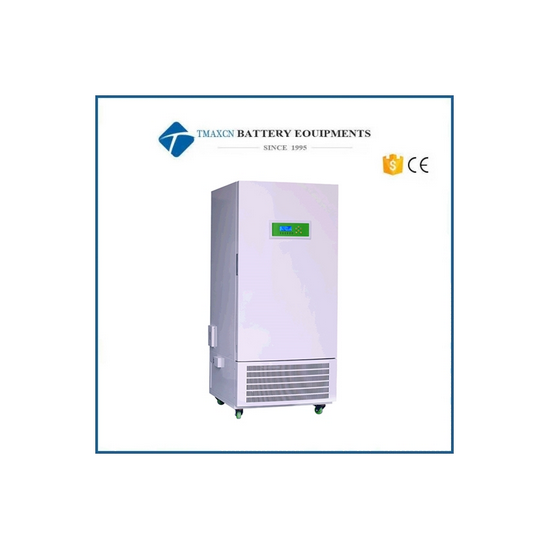

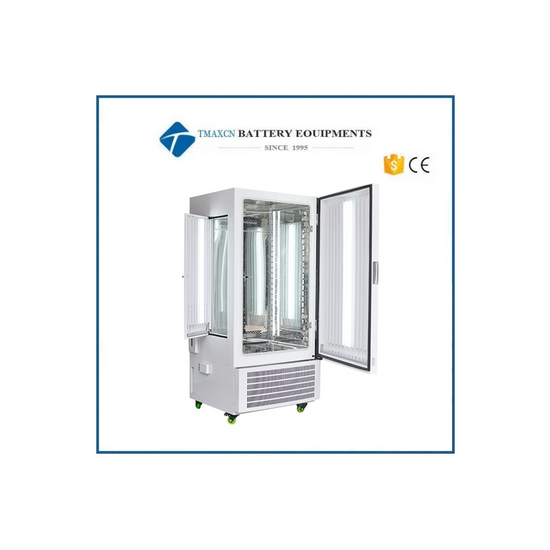

Climatic and Growth Chamber with Cold Light Source&Humidity Controller


This product is suitable for the special equipment for the cultivation and incubation of various microorganisms in the production, testing and scientific research of pharmaceutical, chemical, environmental protection, agricultural and other industries.


Features

1. The LED cold light source is used to illuminate, and it generates very little heat, which makes the temperature in the cabinet more stable.

2. There is vertical light on the top of the box, and three layers of light panels make the light at any point in the box more uniform, which changes the shortcomings of strong light on the two sides and weak light in the middle.

3. Stepless dimming: the required illumination is set by the control panel to increase or decrease the current to change the intensity of the light, completely changing the disadvantage of changing the number of lamps before changing the intensity of the light.

4. The partitions and partitions are used in close cooperation between each layer, and there is no light interference on the upper and lower layers.

5. The light plate (partition) can be adjusted arbitrarily, which is convenient for the operator to perform various experiments and plant cultivation.

6. The incubator door is designed as a double door. The inner door is made of tempered glass, which can directly observe the culture conditions in the working room. The outer door is sealed with a magnetic door, which has good sealing.

7. Large-screen LCD display, multiple groups of data on one screen, menu-type operation interface, easy to understand and easy to operate.

8. Touch button, menu operation, intuitive and clear, multiple parameters can be displayed on the same screen.

9. Mirror stainless steel liner, four corners semi-circular arc transition, no need to use tools to remove the partition or partition in the cabinet, which is convenient for studio disinfection and cleaning.

10. The parameters set by the user can be automatically stored in the event of a power failure, and the original setting program will be run after the power is turned on.

11. The program controls the temperature, humidity, light intensity, time and heating rate, and can be controlled by multi-step ladder program, which simplifies the complicated test process and truly realizes automatic control and operation.

12. When the light cultivation box and artificial climate box fail, the LCD screen displays a fault message, and the operation failure is clear at a glance.

13. The use of branded compressors and independently developed compressor cooling systems can effectively extend the life of the compressor.

14. Using JAKEL tube-flow circulation fan, with uniquely designed air duct structure, a good air circulation system is manufactured to effectively ensure the temperature uniformity in the box.

15. Independent temperature limit alarm system, and audible and visual alarm prompt the operator to ensure safe operation without accidents.

16. The temperature is too high or too low.

17. Equipped with auxiliary temperature controller to ensure that the product can work normally (for heating) when the main temperature control is out of control.

18. Use well-known brand humidity sensor and self-designed built-in water tank electric heating tube humidification system to effectively guarantee humidity deviation.

19. The bottom of the left side of the box is equipped with a detachable lower sensor that controls the water level of the humidifying water, which is convenient for the operator to view and repair.


SPECIFICATIONS

Model

LAC-175N-Ⅱ

LAC-275N-Ⅱ

LAC-375N-Ⅱ

LAC-475N-Ⅱ

Nominal volume (L)

175

275

375

475

Temperature control range (℃)

With light 10-55 ℃ without light 0-55 ℃

Temperature resolution (℃)

0.1

Temperature fluctuation (℃)

±1.5

Temperature deviation (℃)

±1.5

Humidity control range (% RH)

30~95

Humidity fluctuation (% RH)

±5

Light intensity (LX)

Overhead vertical LED cold light source in the box, (3 layers of light, 0-5000 stepless dimming for each layer)

Refrigerant

R134a

power supply

220V±10%,50Hz±2%

Continuous running time

Can run continuously for a long time

Working environment (℃)

Temperature 0 ~ 40 ℃, humidity 85% RH or less, no corrosive gas

Machine dimensions(cm)
W×D×H

61×62×150

74×71×157

75×75×173

86×75×182

Chamber size(cm)W×D×H

45×42×93

58×51×93.5

59×55×116

70×55×125

Net weight / Gross weight(kg)

82/125

95/138

103/147

115/157

Shelves(standard/maximum)

3/16

3/16

3/21

3/22

Optional parts

1.CO2 inlet (to promote plant growth)

2.CO2 controller (imported infrared CO2 sensor)

3.Remote control system

4.Vertical lighting board













 battery equipment
