Channeling Capper For Cylindrical Supercapacitor
Model Number:
TMAX-RK60Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

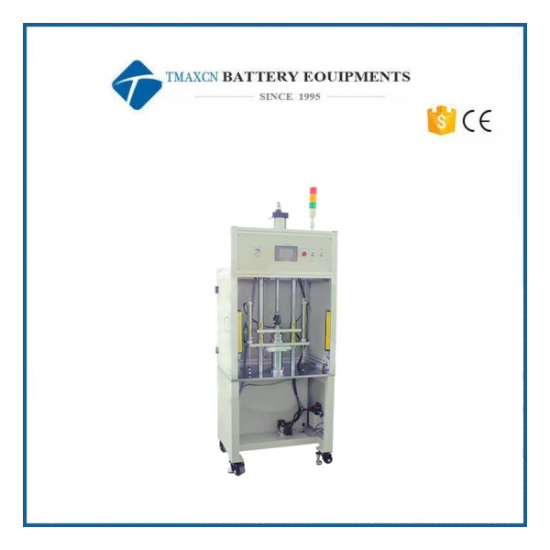

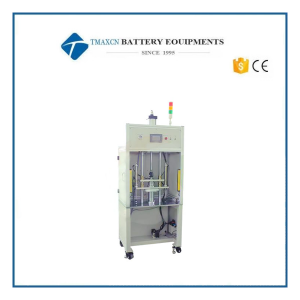

Channeling Capper For Cylindrical Supercapacitor

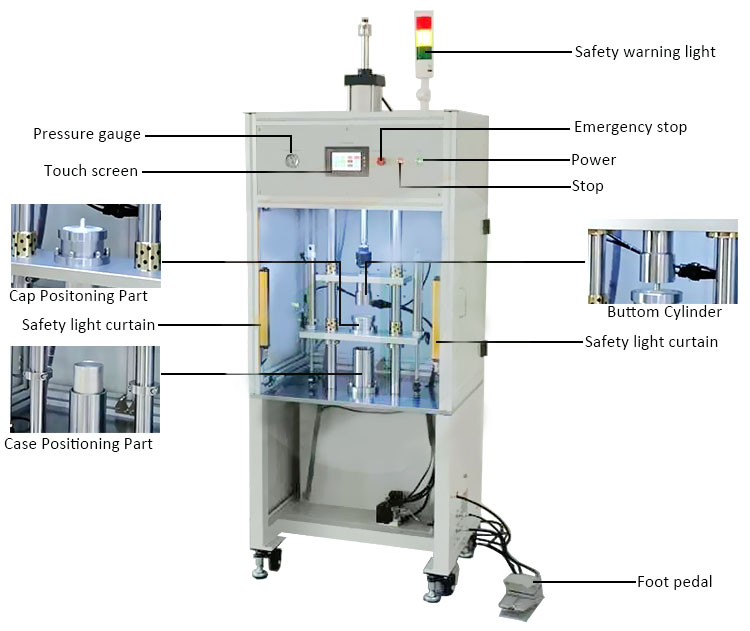

Main features
* high precision guide column guide sleeve for guidance, shell size is stable.
* the height of the supercapacitor can be adjusted to suit products of different heights.
* product counting function, easy to see the amount of processing.
* cylinder speed can be adjusted evenly.
* adopt optical curtain electronic protection, safe and reliable.
* geometric design, delicate and beautiful.
* suitable for series 60 cylindrical super capacitors;
* shell depth can be adjusted.
* shell entry speed: 50mm/s speed can be adjusted;
* service life: the normal service life of the tooling should reach more than 500,000 times.
* capacity: ≥3PCS;
* movement rate: 98%;
* air source: adjustable from 0.5 to 0.8mpa;
* power supply: 220V/50HZ;
* power: 500W;
* dimension: L800mm *W 600mm * 1600mm;
* weight: 300kg;
