Cathode Material LiNiMnCoO2 Li-Ion Battery Powder For Li-Ion Battery

Product Name:	LiNiMnCoO2	Type:	TMAX-NCM-111
Application:	Suitable for square aluminum,polymer,cylindrical battery
Chemical Property
English Name:	Lithium Nickel Cobalt Manganese Oxide
Appearance:	Black brown powder, stable under normal temperature and pressure
Ni+Mn+Cu	≥57.5	58.79	Consult GB/T1287-94.GB/T15899-1995.HG/T2631-2005:  Volumetry
Li	7~8	7.29	Consult JY/T 015-1996: Inductively coupled plasma atomic emission spectrometry
Na	≤0.03	0.0036
Fe	≤0.01	0.0032
Cu	≤0.005	0.0001
H2O	≤0.05	0.01875	Consult.GB/T606-2003                           C30 Carle Fischer coulometric instrument
Physical Characteristics
d10	≥5	6.66	Consult.GB/T19077.1-2008                Mastersizer2000 laser particle analyzer
d50	9~12	10.11
d90	≤20	18.1
PH	≤11
Tape Density:	≥2.30	2.5	Consult GB/T5162-2006/ISO3953:1993; FZS4-4B Jolt density meter
BET(m2/g):	0.20-0.40	0.33	Consult GBT 13390-200Tristar specific surface area
Electrical chemical performance
First discharge efficiency(%)	≥85	87	Consult GB/T20252-2006 Appendix C Button half cell 0.2C  4.2v-2.7v
First discharge capacity(mAh/g)	≥148	145~150

Usage:
It is cathode active material of the lithium ion battery.
The nickel cobalt manganese three yuan battery material as positive pole of battery are more safety than lithium cobalt oxide battery.Mainly used for small electric equipment.

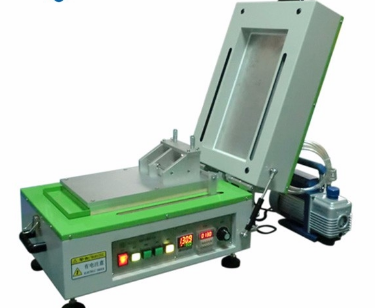

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
