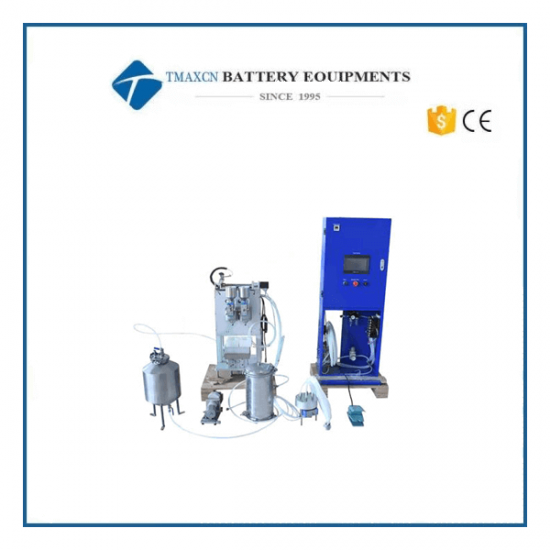

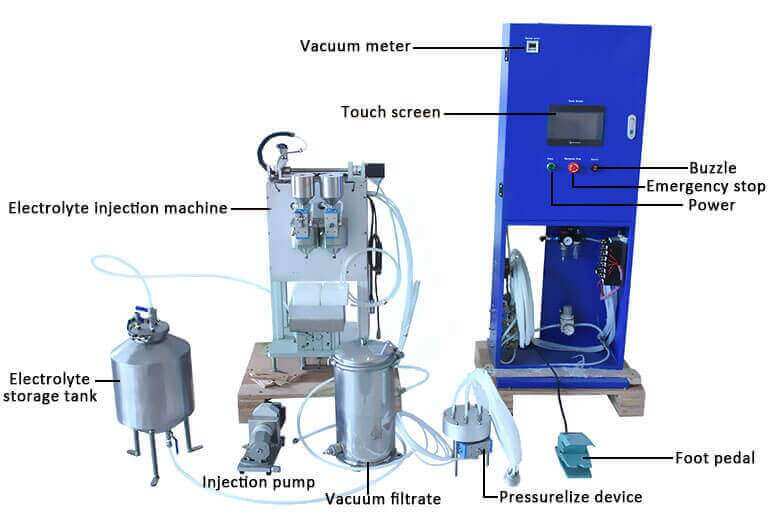

Battery Vacuum Electrolyte Filling Machine For Threaded Cylindrical Supercapacitor Liquid Injection
Model Number:
TMAX-ZY60BCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Battery Vacuum Electrolyte Filling Machine For Threaded Cylindrical Supercapacitor Liquid Injection
Main features
* High measurement accuracy and repeatability;
*Injecting liquid after vacuum pumping, Then vacuum after injection, such alternating operation standing method, high efficiency, accurate accuracy, convenient and reliable operation;
*2 stations can choose one station operation without mutual interference;
* The time of vacuuming, the degree of vacuum, the time of injecting, the pressure of pressurization can be set and adjustable;
* Anti-corrosion, special high wear-resistant ceramic pump head, long life design, imported components in key parts;
*The entrance and exit are connected by chemical resistant hoses;
* can be operated in a glove box or dry room;
* The appearance is exquisite and beautiful, and the performance is stable.
|
Model |
TMAX-ZT60B Vacuum filling machine |
|
Applicable products |
diameter 60 mm batteries, super capacitor,height 50-180mm |
|
Filling station |
Single face 2 stations |
|
Filling accuracy |
±2%, 0~250ml adjustment |
|
Vacuum |
Vacuum pressure is maintained above -98KPa during injection(vacuum pump provide by yourself) |
|
Nitrogen |
≥0.4MPa |
|
Voltage |
AC220V |
|
Power |
1.5KW |
|
The key parts are made of stainless steel corrosion resistant materials. |
|
