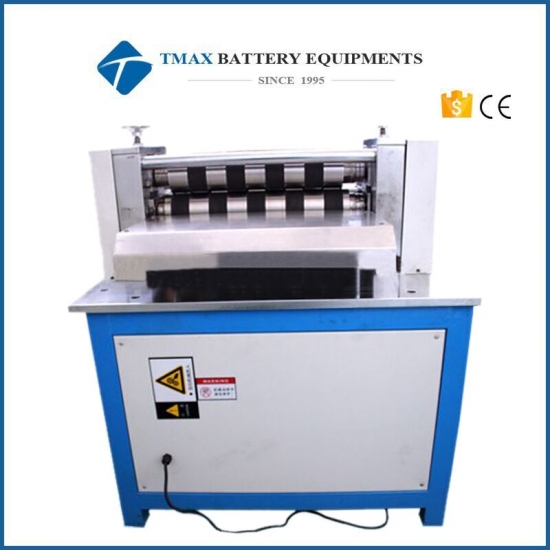

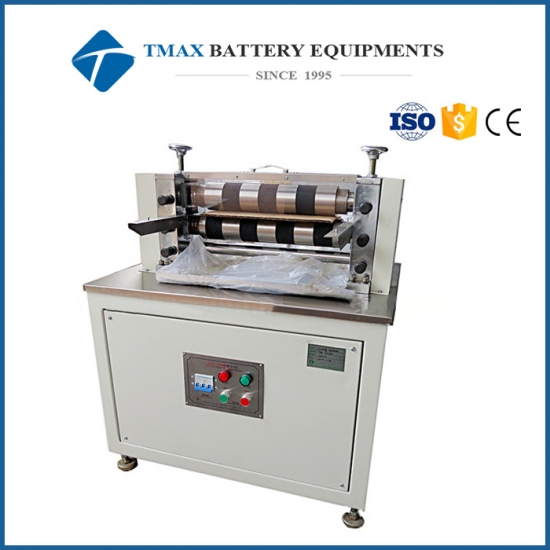

Battery Electrode Slitting Machine for Pouch/Cylindrical Cell preparing electrode
Model Number:
TMAX-DYG-110AType:
Electrode Slitting MachineDimension(L*W*H):
20-500mmCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

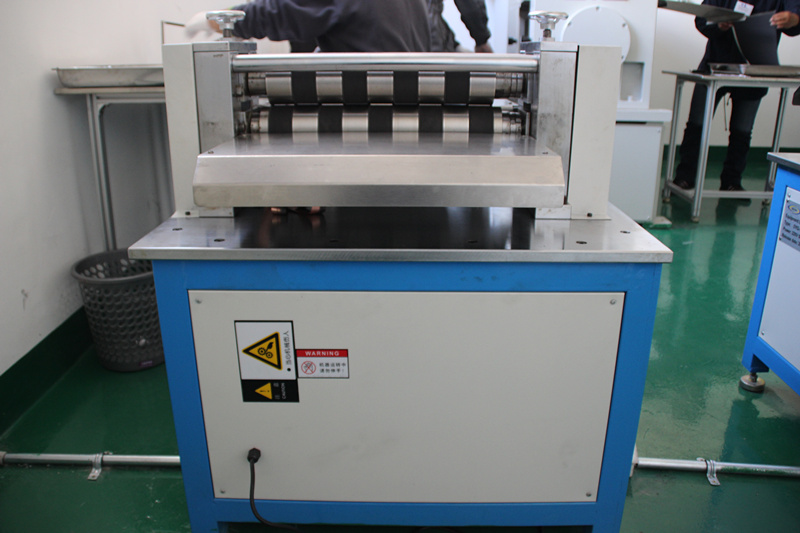

Battery Electrode Slitting Machine for preparing electrode
TMAX-DYG-110A model Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.
2 The
slitting machine can slit electrode with width up to 500mm, and with finished
slitting width from 20mm to 500mm with different model cutter blade.
3 This equipment is suitable for rechargeable lithium batteries cathode and
anode electrode of the longitudinal cutting, the electrode of the base material
can be aluminum foil and copper foil, sliced edge tidy, high dimensional
accuracy, no burr, it is an important equipment in plate processing.
|
Model |
Battery Electrode Slitting Machine TMAX-DYG-110A |
|
Source voltage |
AC 110V-220V, Customized, 50HZ |
|
Power |
800W |
|
Warranty |
One year limited warranty and lifetime support |
|
Slitting mode |
Single knife hobbing |
|
Knife type |
Upper and lower round knife |
|
Slitting width |
20-500mm |
|
Slitting thickness |
100-300um |
|
Hob diameter |
Φ80 mm |
|
Slitting speed |
10m/min, Adjustable |
|
Dimension(L*W*H) |
610*610*1100mm |
|
Weight |
200kg |
